PRODUCT CATEGORY · Primary busbar range
Busbars
Pin, fork and modular busbars for organized current distribution in breakers and panel assemblies.
- Product series
- 57
- Model references
- 57
- Supply
- Standard & OEM
Explore the busbars range.
Open a product series to review its published model reference, technical data and application details.
.jpg&w=3840&q=100)

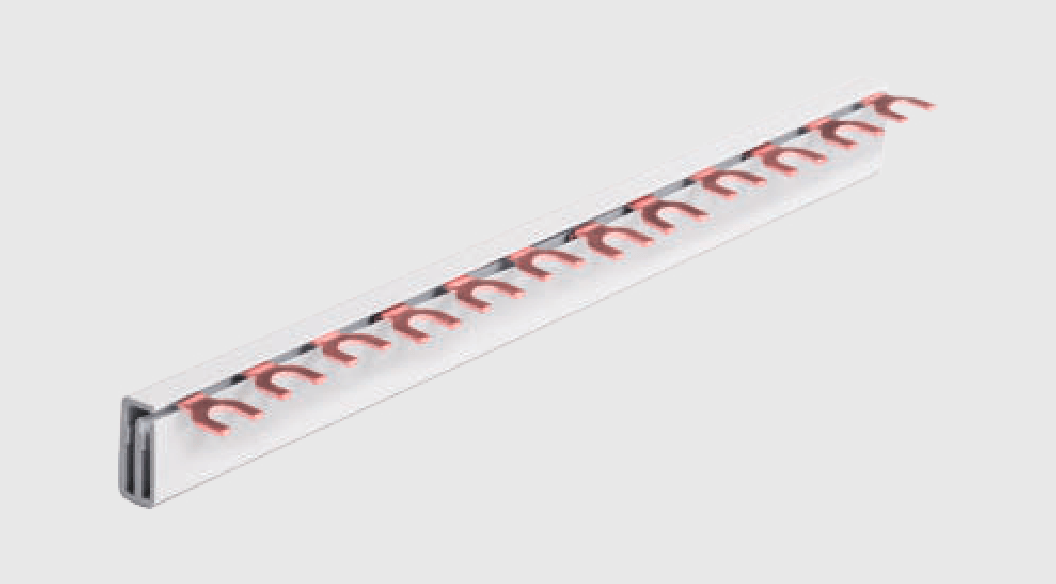

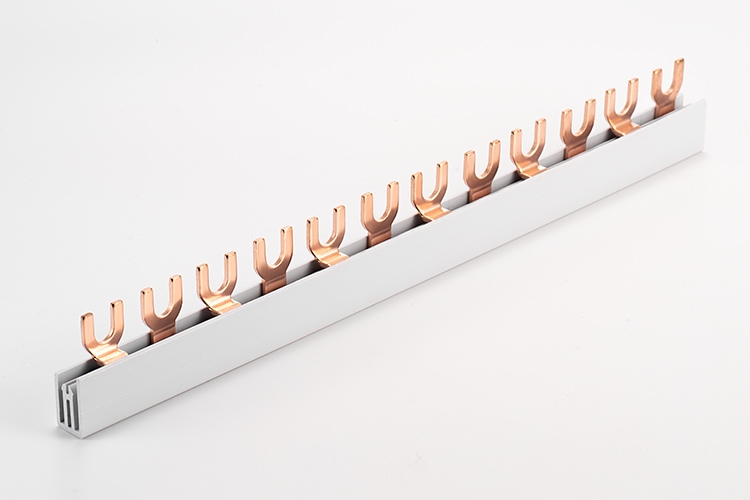

Fork · 2 Phase · Closed · F-2L-D · M6
Fork type, 2-phase closed busbars (M6)
F-2L-D M6 fork-type closed busbars with 12 mm fork contacts, 12 mm fork length and 210, 1000 or 1016 mm finished lengths.
View product details.jpg&w=3840&q=100)

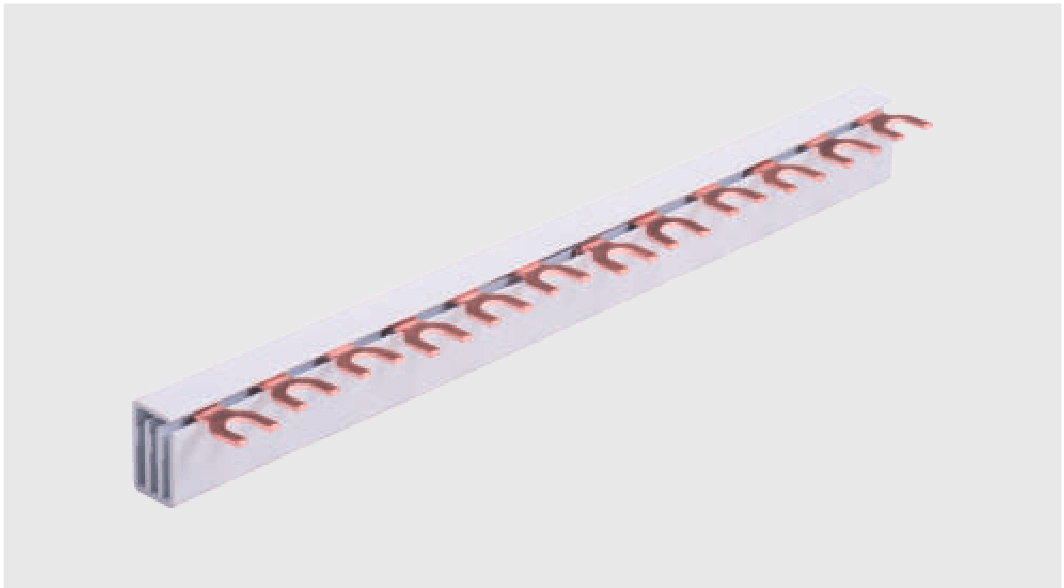

Fork · 3 Phase · Closed · F-3L-D · M6
Fork type, 3-phase closed busbars (M6)
F-3L-D M6 fork-type closed busbars with 12 mm fork contacts, 12 mm fork length and 210, 1000 or 1016 mm finished lengths.
View product details

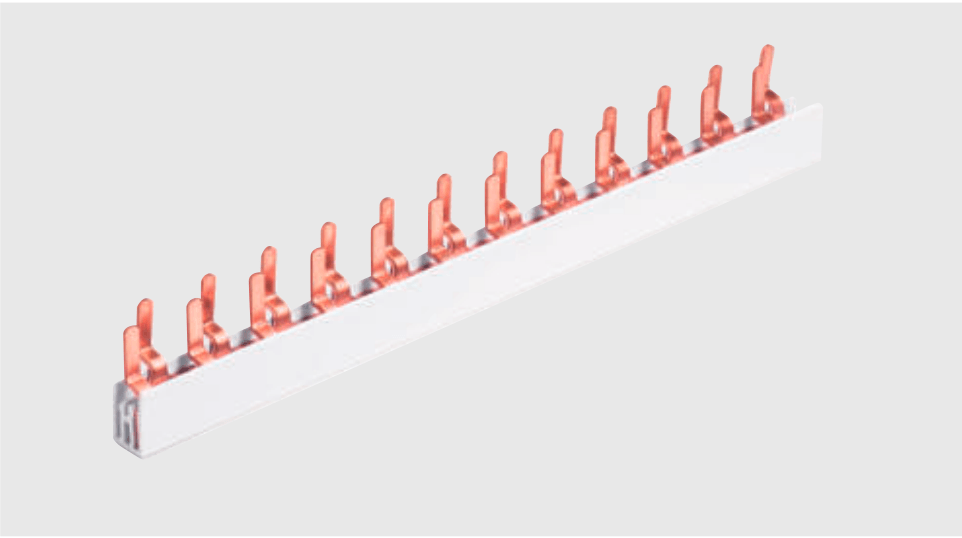

Pin · 1P+N · V Series
Pin type, 1P+N busbars V
V-series pin busbars for compact 1P+N distribution across compatible modular protective devices.
View product details

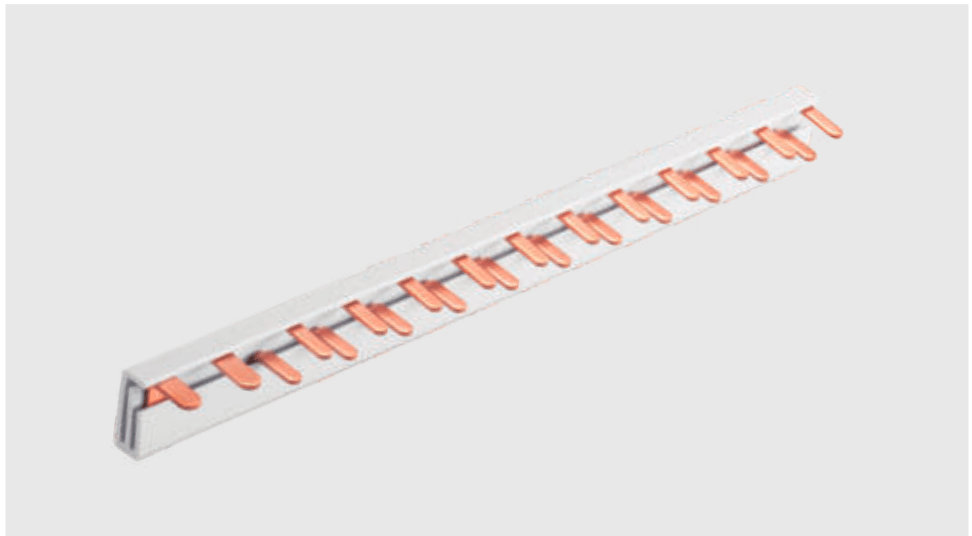

Pin · P-2L + 6LN–11LN · Special lengths
Pin type, P-2L+6LN–11LN busbars
Pin-type P-2L busbars with 6LN to 11LN terminal counts for compact two-phase distribution assemblies.
View product details.jpg&w=3840&q=100)

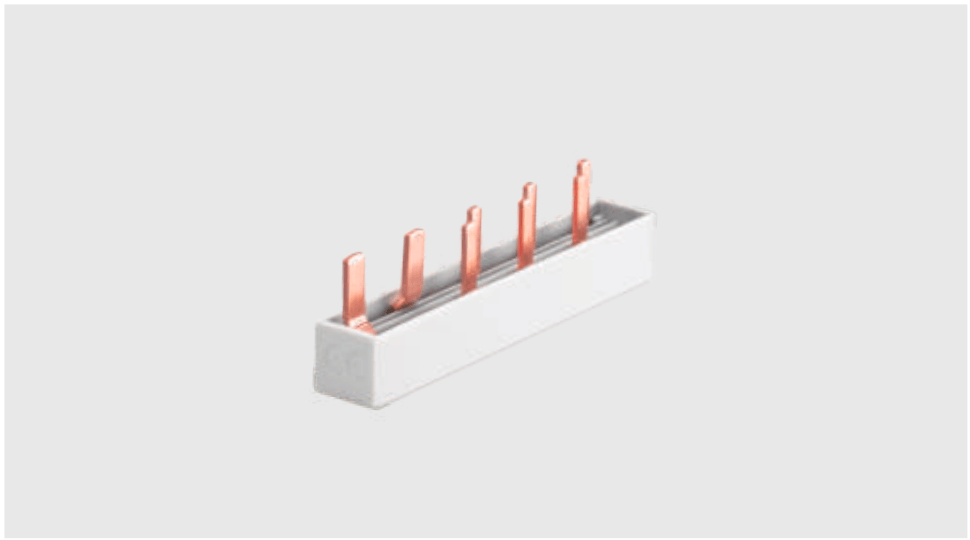

Pin · 1P+N · P-2L+2LN–4LN
Pin type, 1P+N Busbars · P-2L+2LN–4LN
Compact 1P+N pin busbars with P-2L base geometry and 2LN, 3LN or 4LN neutral combinations.
View product details.jpg&w=3840&q=100)

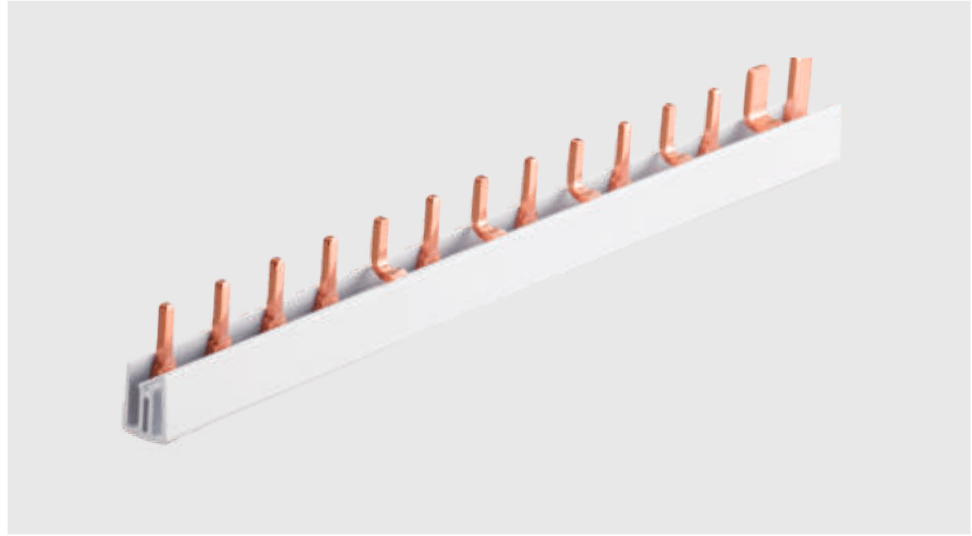

Pin · 2 Phase Combination · P-Series
Pin type, 2-Phase Combination Busbars · P-Series
Pin-type two-phase combination busbars for configured P-series assemblies with 16 mm² conductors and 80 A reference current.
View product details.jpg&w=3840&q=100)

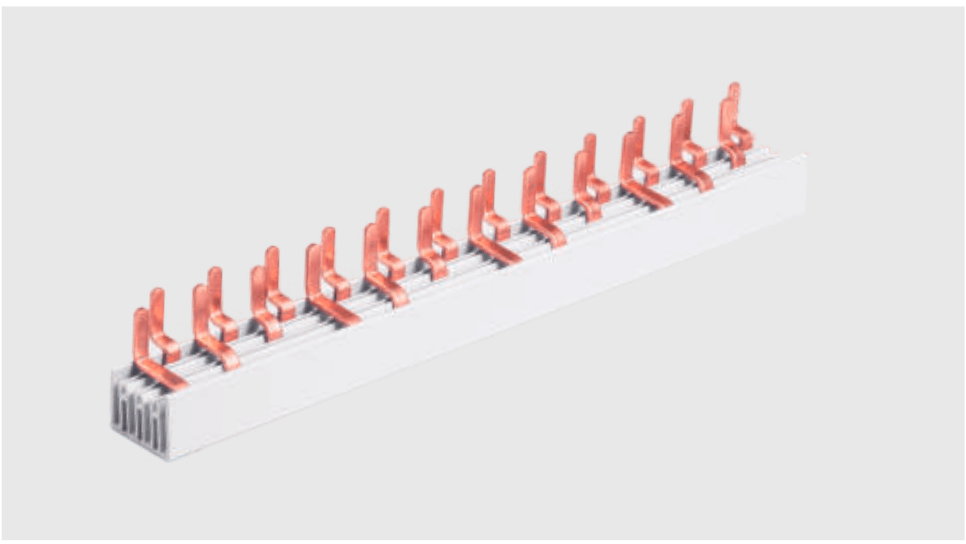

Pin · 3L+3N · 1P device sequence
Pin type, 3L+3N busbars
Pin-type 3L+3N busbars for organized three-line and three-neutral distribution across compatible modular devices.
View product details

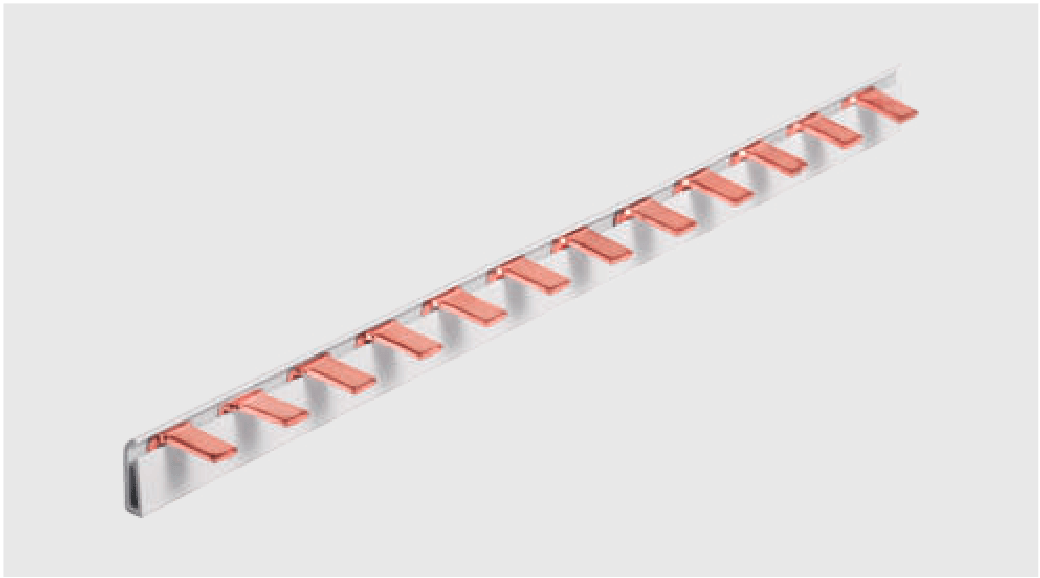

Pin · 1 Phase · M5.5
Pin type, 1-phase busbars (M5.5)
M5.5 pin-type one-phase busbars with 5.5 mm contacts, three standard lengths and a 25 mm² high-current option.
View product details

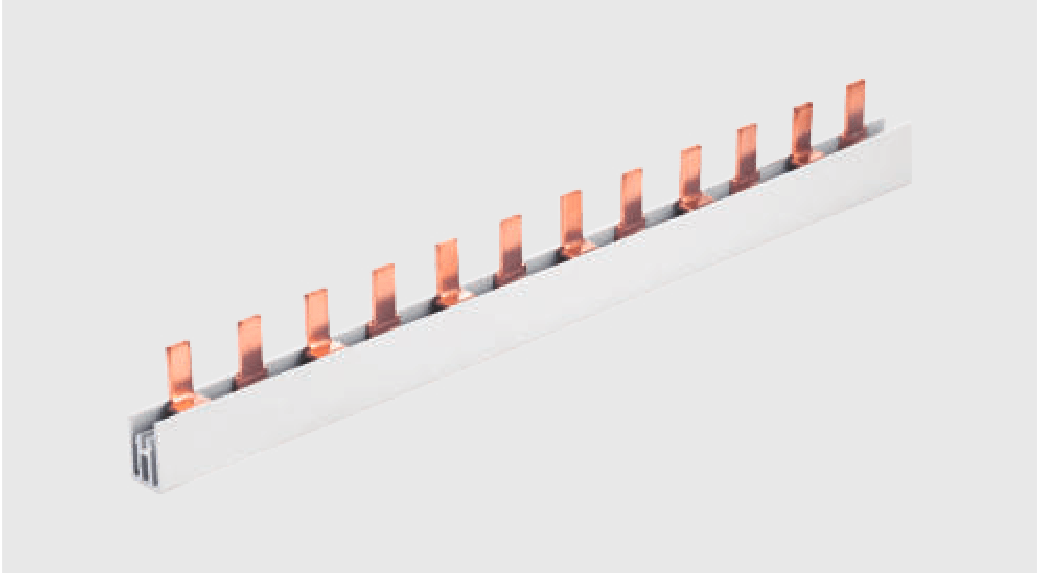

Pin · 2 Phase · M5.5
Pin type, 2-phase busbars (M5.5)
M5.5 pin-type two-phase busbars with 5.5 mm contacts, three standard lengths and a 25 mm² high-current option.
View product details

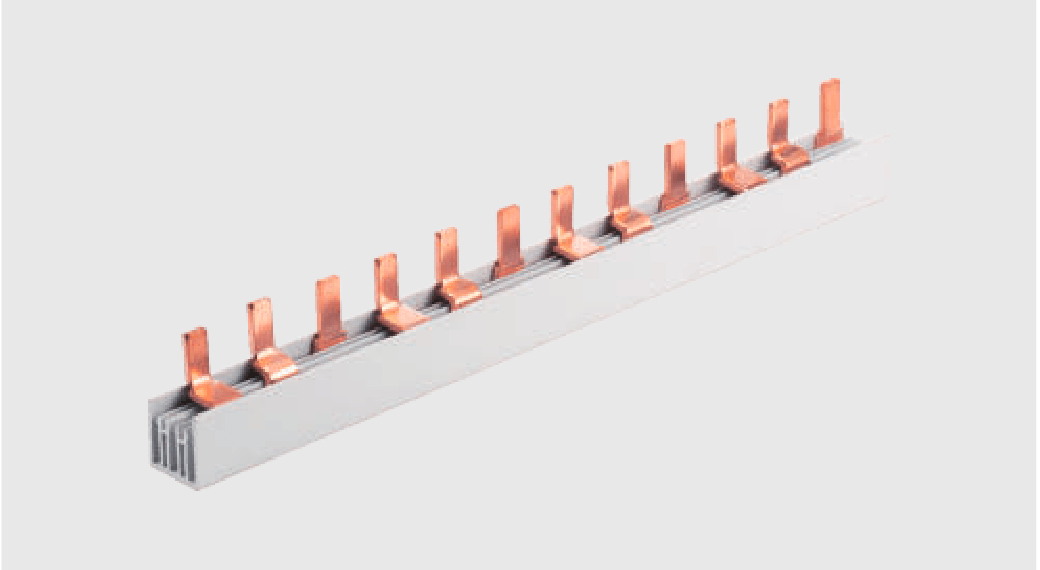

Pin · 3 Phase · M5.5
Pin type, 3-phase busbars (M5.5)
M5.5 pin-type three-phase busbars with 5.5 mm contacts, three standard lengths and a 25 mm² high-current option.
View product details

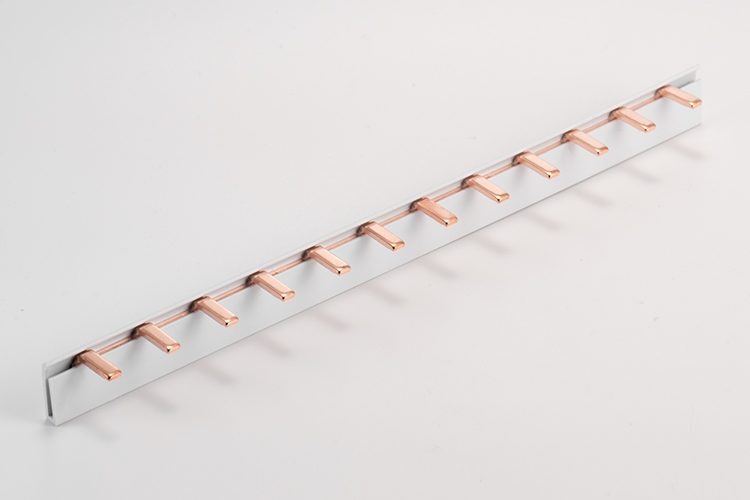

Pin · 1 Phase · M6
Pin type, 1-phase busbars (M6)
M6 pin-type one-phase busbars with 11 mm fork contacts, 12.5 mm contact length and three standard finished lengths.
View product details

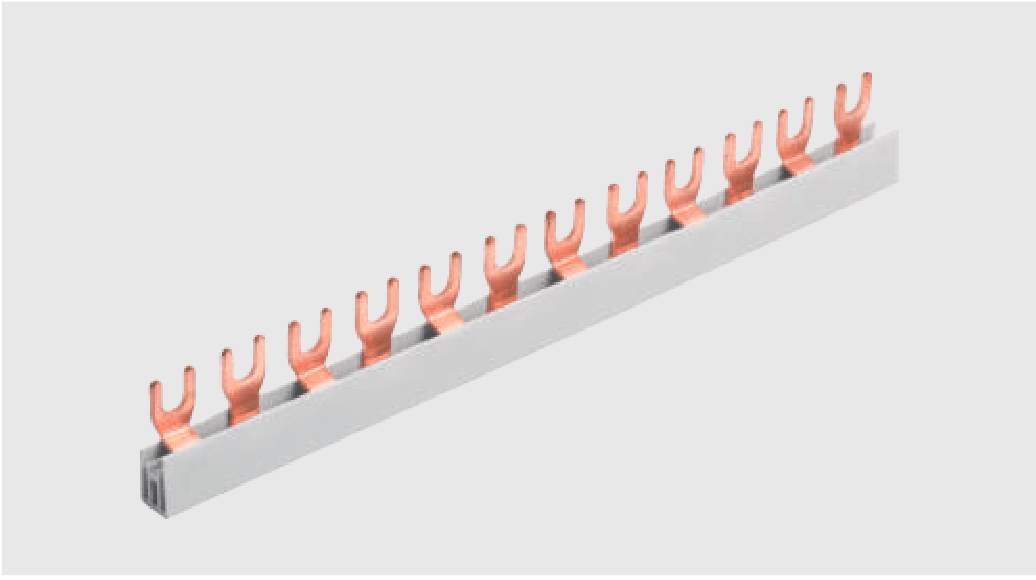

Fork · 2 Phase · G-2L · M6
Fork type, 2-phase busbars G-2L (M6)
G-2L fork-type two-phase busbars with 11 mm fork contacts, 13.5 mm contact length and three standard finished lengths.
View product details

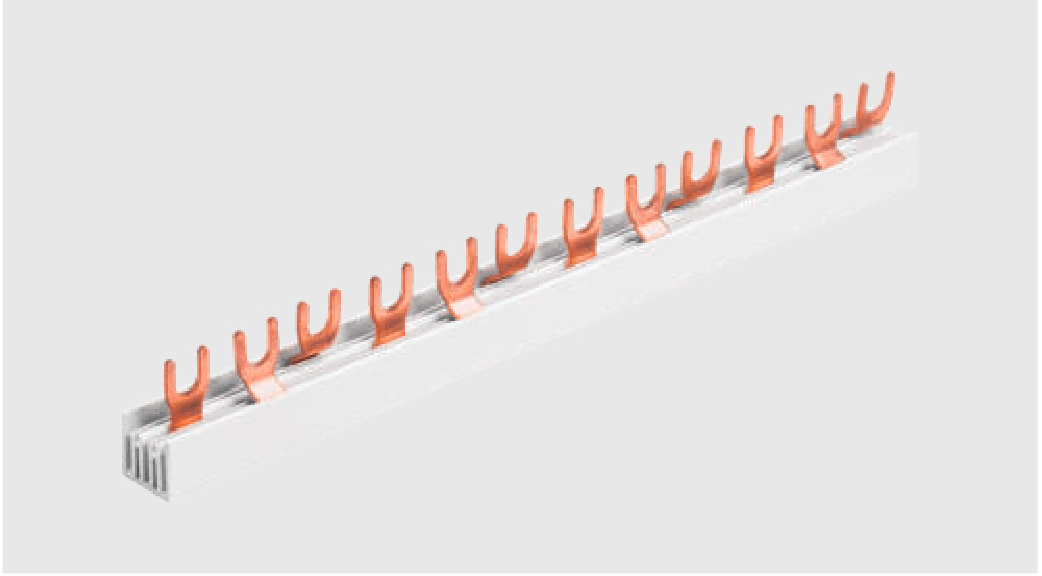

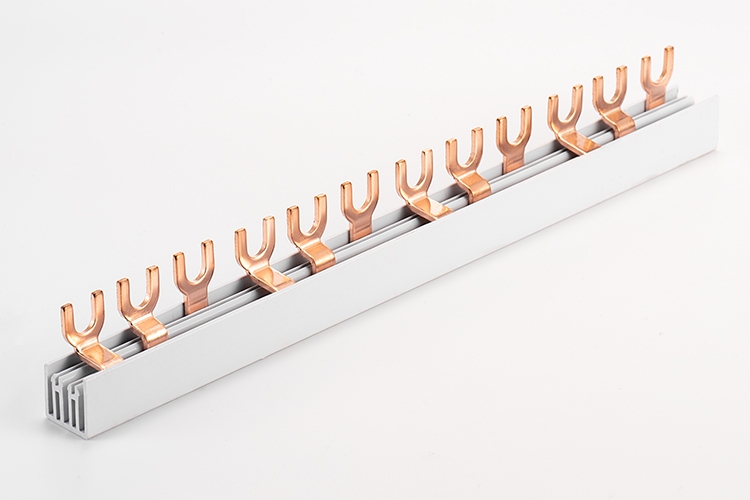

Fork · 3 Phase · G-3L · M6
Fork type, 3-phase busbars G-3L (M6)
G-3L fork-type three-phase busbars with 11 mm fork contacts, 13.5 mm contact length and three standard finished lengths.
View product details

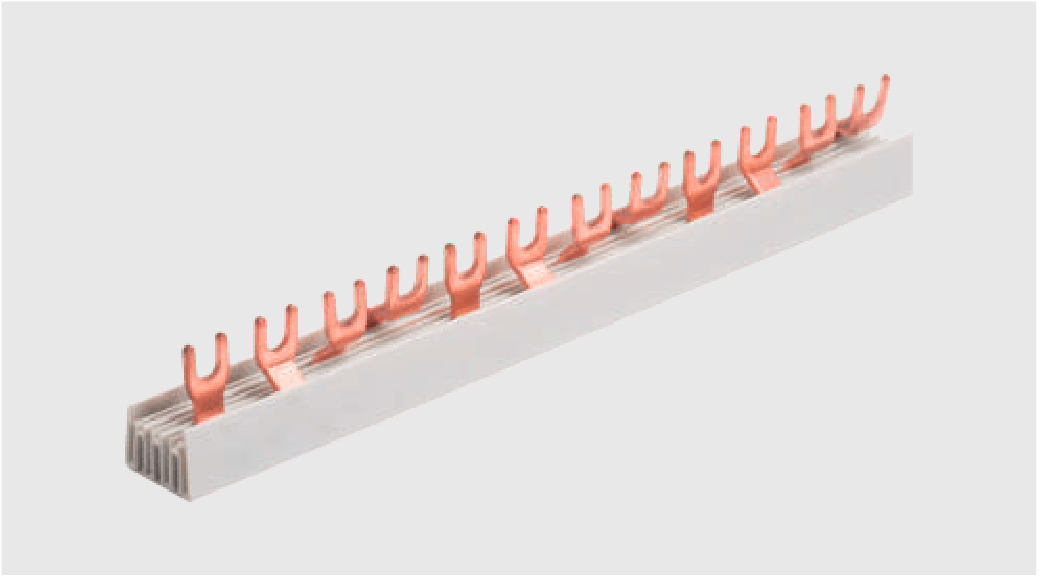

Fork · 4 Phase · G-4L · M6
Fork type, 4-phase busbars G-4L (M6)
G-4L fork-type four-phase busbars with 11 mm fork contacts, 13.5 mm contact length and 210 / 1016 mm finished lengths.
View product details

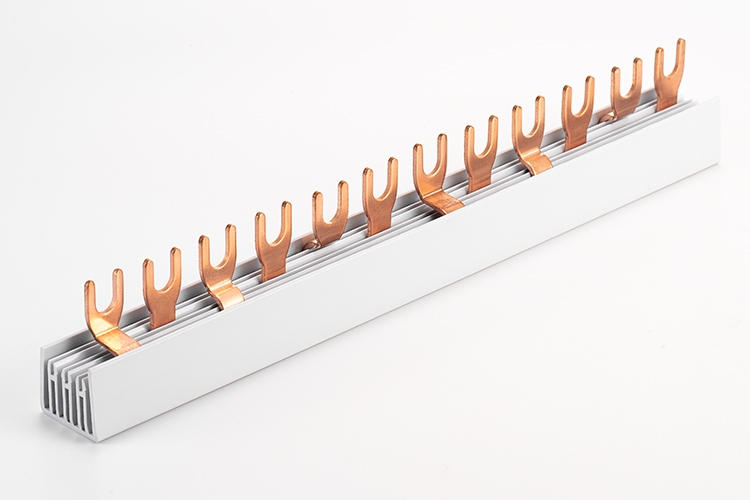

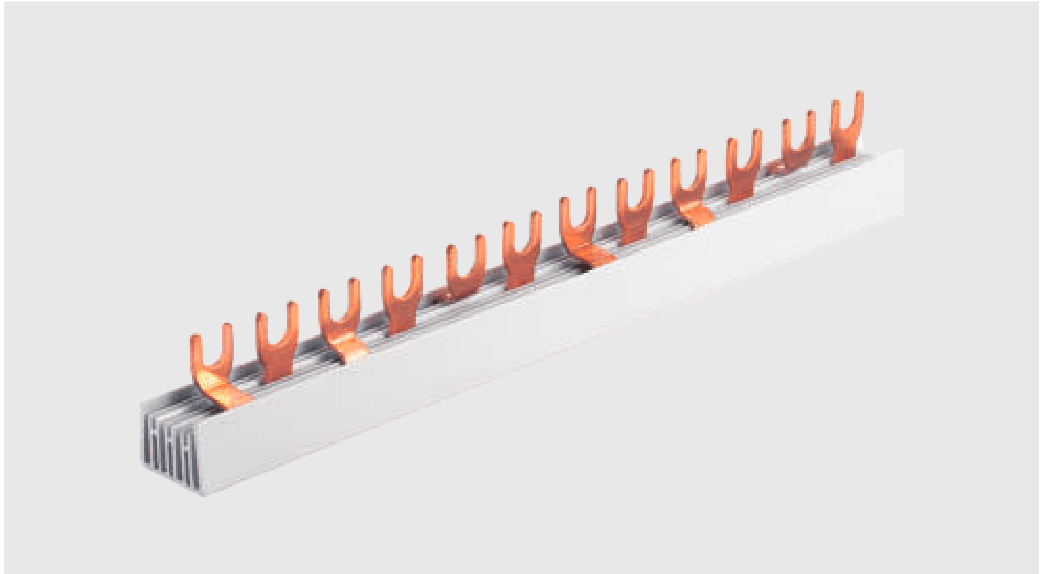

Fork · 3L+3N · M6
Fork type, 3L+3N busbars (M6)
M6 fork-type 3L+3N busbars with 11 mm fork contacts, 13.5 mm contact length and 210 / 1000 mm finished lengths.
View product details

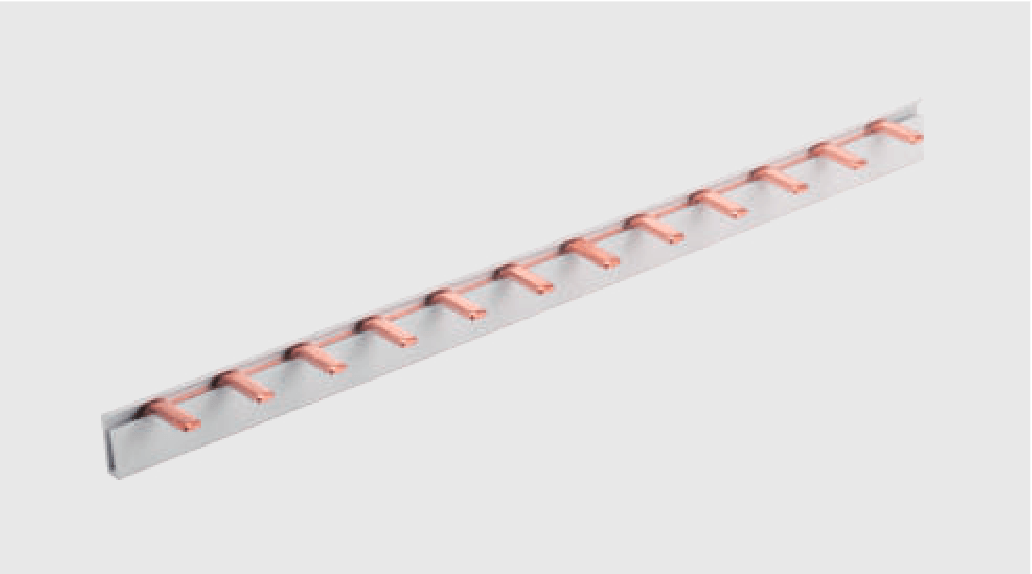

Pin · 1 Phase · S-1L
Pin type, 1-phase busbars S-1L
S-1L pin-type one-phase busbars with 4 mm pin contacts, 11.5 mm pin length and three standard finished lengths.
View product details

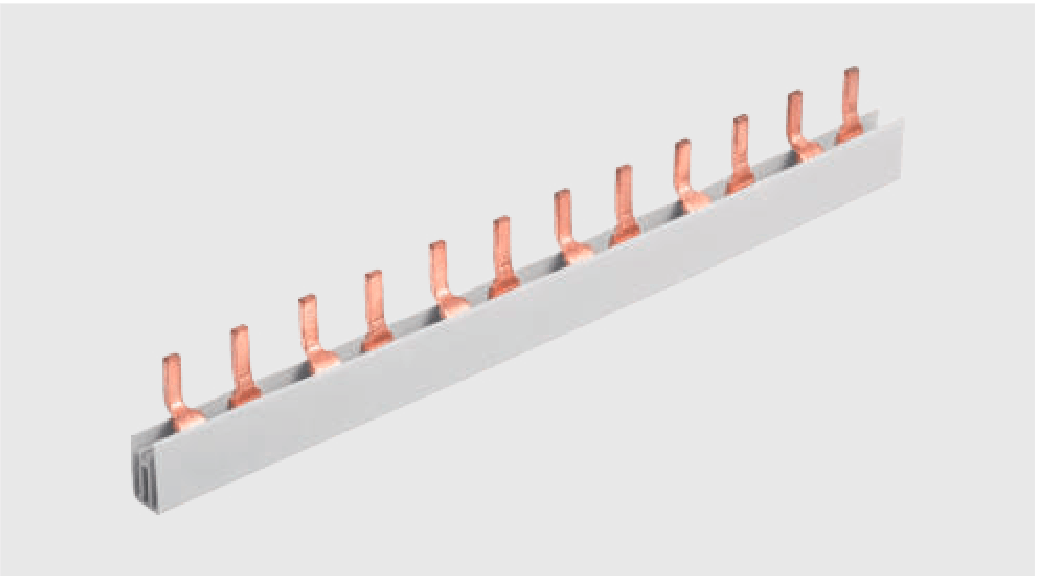

Pin · 2 Phase · S-2L
Pin type, 2-phase busbars S-2L
S-2L pin-type two-phase busbars with 4 mm pin contacts, 12.5 mm pin length and three standard finished lengths.
View product details

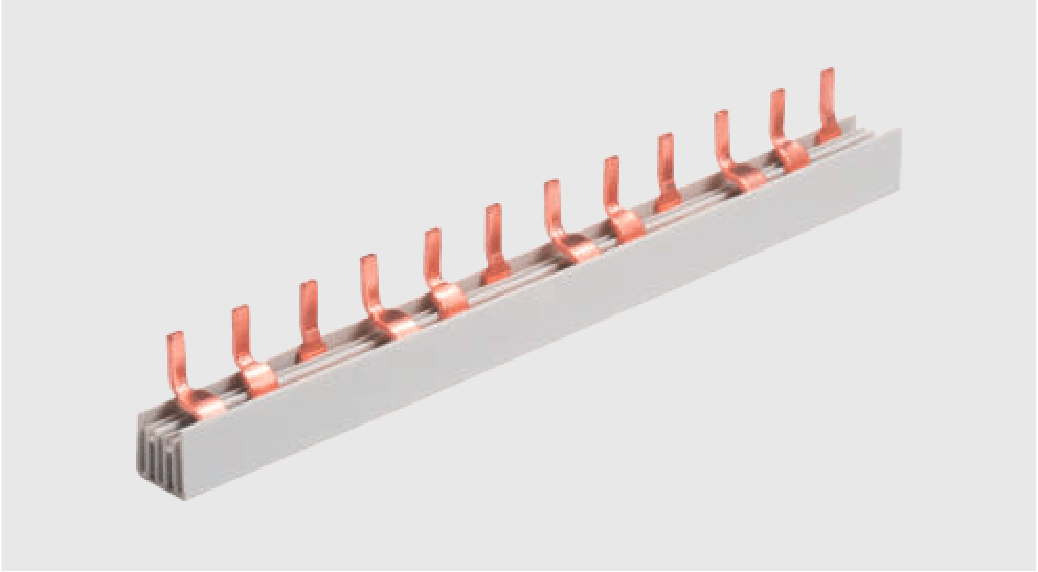

Pin · 3 Phase · S-3L
Pin type, 3-phase busbars S-3L
S-3L pin-type three-phase busbars with 4 mm pin contacts, 12.5 mm pin length and three standard finished lengths.
View product details
Pin · 4 Phase · S-4L
Pin type, 4-phase busbars S-4L
S-4L pin-type four-phase busbars with 4 mm pin contacts, 12.5 mm pin length and 210 or 1016 mm finished lengths.
View product details

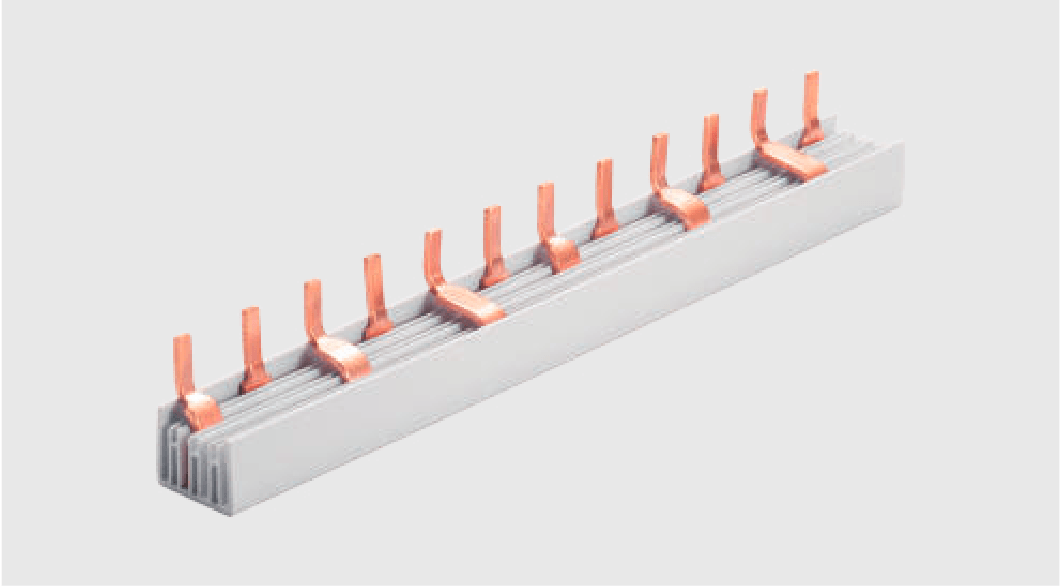

Pin · 3L+3N · S Series
Pin type, 3L+3N busbars S-3L+3N
S-3L+3N pin-type busbars with 4 mm pin contacts, 11.5 mm pin length and 210 or 1000 mm finished lengths.
View product details
.jpg&w=3840&q=100)

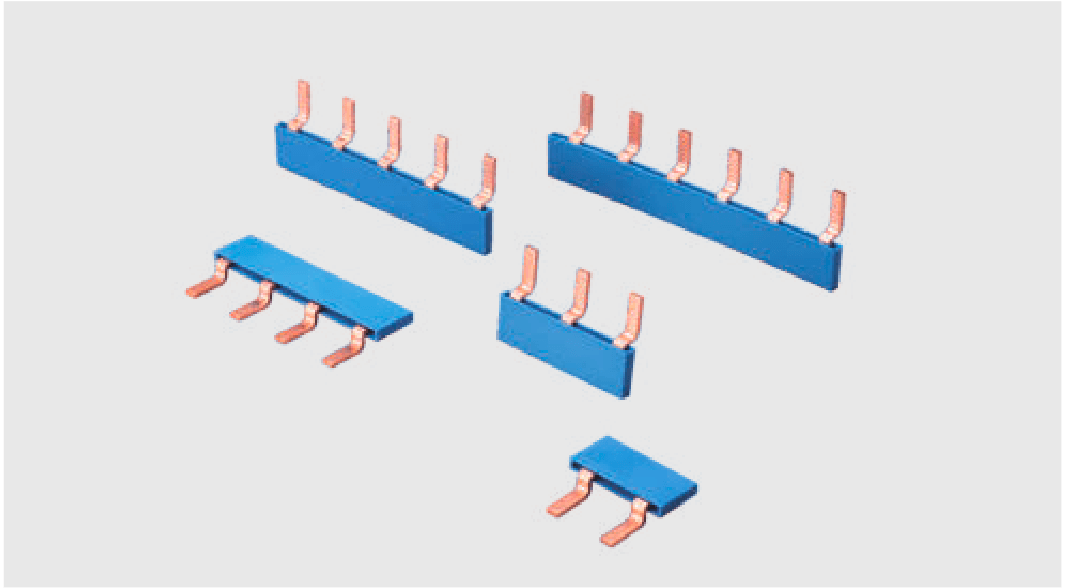

Pin · 1P · Closed · P-1L-DB
Pin type, 1P closed busbars
P-1L-DB pin-type closed 1P busbars with 4 mm pin contacts, 13.8 mm pin length and compact 30–103 mm finished lengths.
View product details

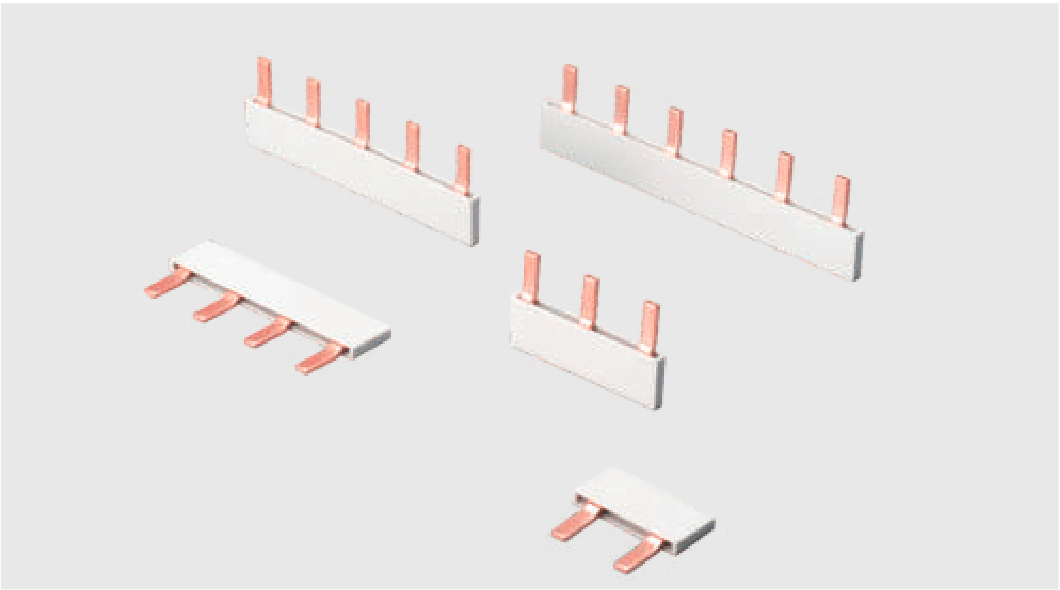

Pin · 1P · Closed · P-1L-DA
Pin type, 1P closed busbars
P-1L-DA pin-type closed 1P busbars with 4 mm pin contacts, 13.5 mm pin length and compact 30–103 mm finished lengths.
View product details
.jpg&w=3840&q=100)

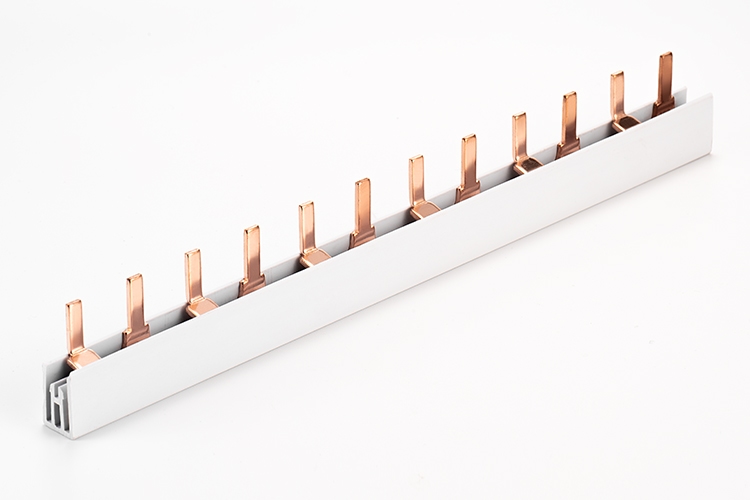

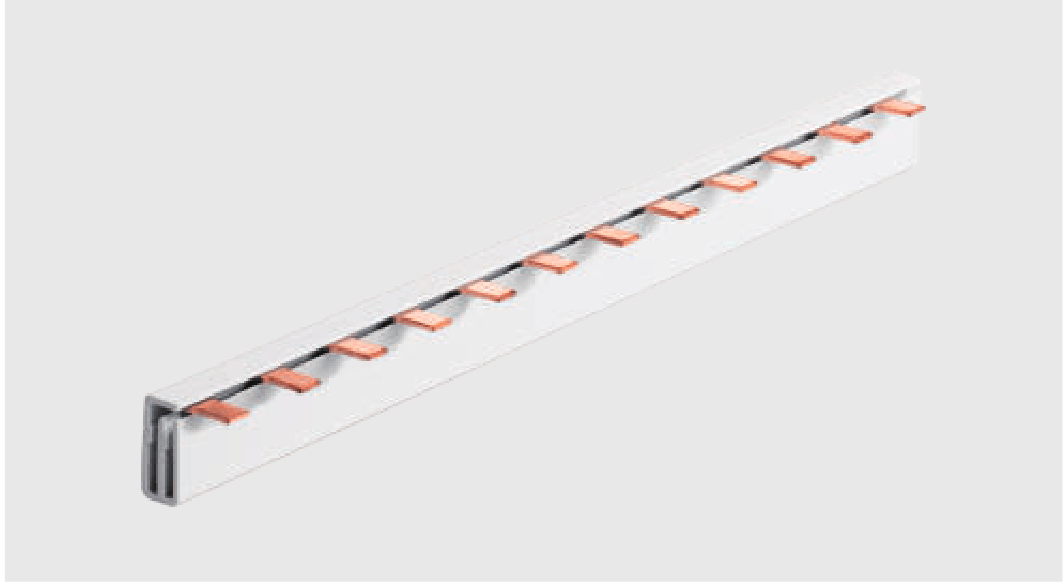

Pin · 2 Phase · Closed · P-2L-D
Pin type, 2-phase closed busbars
P-2L-D pin-type closed busbars with 4 mm pin contacts, 11.5 mm pin length and 210, 1000 or 1016 mm finished lengths.
View product details.jpg&w=3840&q=100)

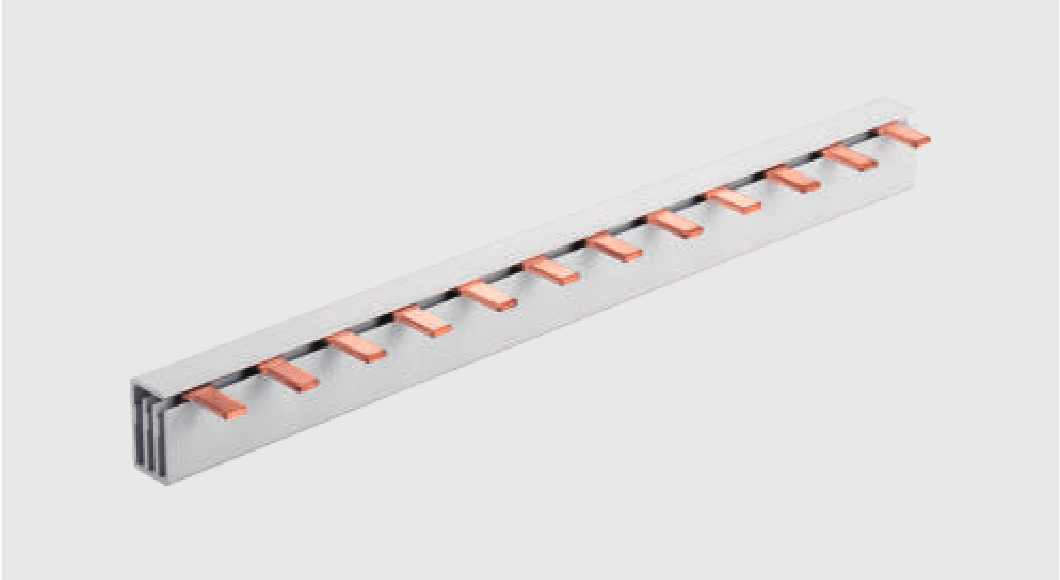

Pin · 3 Phase · Closed · P-3L-D
Pin type, 3-phase closed busbars
P-3L-D pin-type closed busbars with 4 mm pin contacts, 11.5 mm pin length and 210, 1000 or 1016 mm finished lengths.
View product details
.jpg&w=3840&q=100)
PRODUCT SUPPORT
Need help confirming the right reference?
Send the application, specification and expected quantity. We will organize the relevant KASEEY series, model and document references.
