Fork Type 2-Phase Busbars (M6)

Fork-type two-phase copper busbars for common-feed connections across modular protective devices in distribution boards and control panels.

Fork type, M6Connection type
2 phasePhase configuration
17.8 mmDevice pitch (B)
8–25 mm²Cross-section range
Technical data
KASEEY Fork type, 2 phase busbars (M6)01 / PRODUCT VIEW

The F-2L series uses a 17.8 mm device pitch with 12 mm-wide, 12 mm-long fork contacts. Published configurations cover 210, 1000 and 1016 mm lengths, 12 to 56 modules, conductor cross-sections from 8 to 25 mm² and reference currents from 50 to 100 A. The drawing identifies the alternating L1/N/Z1 and L2/N/L1 fork positions for two-phase distribution.

02 / TECHNICAL DATA

F-2L published models and dimensions

Choose the required conductor cross-section, finished length and module count. Dimensions B, C, D and F correspond to the published drawing; all dimensional values are in millimetres.

Product foundation

Connection typeFork type, M6
Phase configuration2 phase
Device pitch (B)17.8 mm
Cross-section range8–25 mm²
Fork width (C)12 mm
Fork length (D)12 mm
Published lengths (F)210 / 1000 / 1016 mm
Published module counts (E)12 / 54 / 56 modules
Reference current range (G)50–100 A

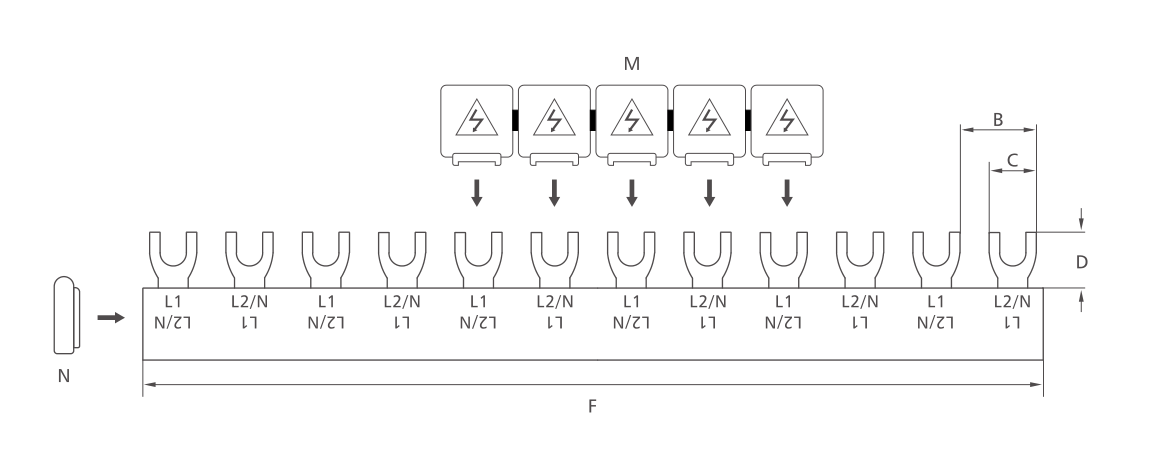

F-2L dimension drawing

KASEEY F-2L M6 fork type 2-phase busbar dimension drawing showing B, C, D and F dimensions
SELECT BY CONDUCTOR

Published sizes & dimensions

Choose a conductor size to select its published order model and dimensional row.

Active order modelF-2L-210/88 mm² conductor size
Conductor size13 published models
MODEL MATRIX

Published model matrix

Select any row to prepare an enquiry for that order model.

Order selectionPublished data
SelectOrder modelConductor sizeArticle No.A Cross SectionB DistanceC Width of ForkD Length of ForkE ModulesF LengthG Reference Current
8 mm²KF021208817.812121221050 A
10 mm²KF0212101017.812121221063 A
13 mm²KF0212131317.812121221070 A
16 mm²KF0212161617.812121221080 A
8 mm²KF025408817.8121254100050 A
10 mm²KF0254101017.8121254100063 A
13 mm²KF0254131317.8121254100070 A
16 mm²KF0254161617.8121254100080 A
8 mm²KF025608817.8121256101650 A
10 mm²KF0256101017.8121256101663 A
13 mm²KF0256131317.8121256101670 A
16 mm²KF0256161617.8121256101680 A
25 mm²KF0254252517.81212541000100 A

Published dimensions are shown in millimetres unless another unit is displayed. Include the application, quantity and installation requirements in your enquiry.

03 / PRODUCT SELECTION

Quote the selected Fork Type 2-Phase Busbars (M6) size.

Select the required conductor size above, then send the chosen order model with your quantity and application details.

PUBLISHED CONDUCTOR SIZE
8mm²
ORDER MODELF-2L-210/8Ready for enquiry
Published dimensionsmm
Article No.KF021208
A Cross Section8mm²
B Distance17.8mm
C Width of Fork12mm
D Length of Fork12mm
E Modules12
F Length210mm
G Reference Current50 A
Change size in the table
