F-3L Series · M5 · 3 Phase

Fork Type 3-Phase Busbars (M5)

Fork-type three-phase copper busbars for M5 device terminals in distribution boards and control panels.

Fork type, M5Connection type

3 phasePhase configuration

17.8 mmDevice pitch (B)

8–16 mm²Cross-section range

Technical data

01 / PRODUCT VIEW

The F-3L M5 series uses a 17.8 mm device pitch with 11 mm-wide, 11.5 mm-long fork contacts. Published configurations cover 210, 1000 and 1016 mm lengths, 12 to 57 modules, conductor cross-sections from 8 to 16 mm² and reference currents from 50 to 80 A. The drawing identifies the repeating L1, L2 and L3 fork sequence for three-phase distribution.

02 / TECHNICAL DATA

F-3L M5 published models and dimensions

Choose the required conductor cross-section, finished length and module count. Dimensions B, C, D and F correspond to the published drawing; all dimensional values are in millimetres.

Product foundation

Connection typeFork type, M5

Phase configuration3 phase

Device pitch (B)17.8 mm

Cross-section range8–16 mm²

Fork width (C)11 mm

Fork length (D)11.5 mm

Published lengths (F)210 / 1000 / 1016 mm

Published module counts (E)12 / 54 / 57 modules

Reference current range (G)50–80 A

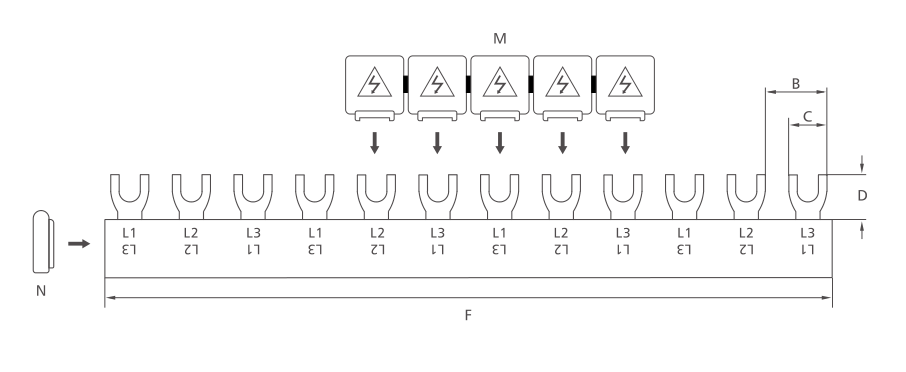

F-3L M5 dimension drawing

KASEEY F-3L M5 fork type 3-phase busbar dimension drawing showing B, C, D and F dimensions

SELECT BY CONDUCTOR

Published sizes & dimensions

Choose a conductor size to select its published order model and dimensional row.

Active order modelF-3L-210/8/M58 mm² conductor size

Conductor size12 published models

MODEL MATRIX

Published model matrix

Select any row to prepare an enquiry for that order model.

Order selection			Published data
Select	Order model	Conductor size	Article No.	A Cross Section	B Distance	C Width of Fork	D Length of Fork	E Modules	F Length	G Reference Current
		8 mm²	KF031208/5	8	17.8	11	11.5	12	210	50 A
		10 mm²	KF031210/5	10	17.8	11	11.5	12	210	63 A
		13 mm²	KF031213/5	13	17.8	11	11.5	12	210	70 A
		16 mm²	KF031216/5	16	17.8	11	11.5	12	210	80 A
		8 mm²	KF035408/5	8	17.8	11	11.5	54	1000	50 A
		10 mm²	KF035410/5	10	17.8	11	11.5	54	1000	63 A
		13 mm²	KF035413/5	13	17.8	11	11.5	54	1000	70 A
		16 mm²	KF035416/5	16	17.8	11	11.5	54	1000	80 A
		8 mm²	KF035708/5	8	17.8	11	11.5	57	1016	50 A
		10 mm²	KF035710/5	10	17.8	11	11.5	57	1016	63 A
		13 mm²	KF035713/5	13	17.8	11	11.5	57	1016	70 A
		16 mm²	KF035716/5	16	17.8	11	11.5	57	1016	80 A

Published dimensions are shown in millimetres unless another unit is displayed. Include the application, quantity and installation requirements in your enquiry.

03 / PRODUCT SELECTION

Quote the selected Fork Type 3-Phase Busbars (M5) size.

Select the required conductor size above, then send the chosen order model with your quantity and application details.

PUBLISHED CONDUCTOR SIZE

8mm²

ORDER MODELF-3L-210/8/M5Ready for enquiry

Published dimensionsmm

Article No.KF031208/5

A Cross Section8mm²

B Distance17.8mm

C Width of Fork11mm

D Length of Fork11.5mm

E Modules12

F Length210mm

G Reference Current50 A

Change size in the table

04 / APPLICATIONS

Where F-3L M5 busbars are used

Three-phase distribution boards

Common-feed connections across compatible three-phase modular protective devices with M5 terminals.

Control panels

Organized three-phase power distribution where 17.8 mm pitch and the smaller M5 fork geometry are required.

OEM panel assemblies

Repeat panel builds selected by Article No., cross-section, module count and finished length.

05 / RESOURCES

F-3L M5 documents and product support

Use the published model table and dimension drawing for initial selection, then request controlled documentation with your enquiry.

What changes between F-3L M5 order models?

The published Article No., conductor cross-section, module count, overall length and reference current vary by model. The 17.8 mm pitch, 11 mm fork width and 11.5 mm fork length remain the same in the supplied table.

How should I select the F-3L M5 busbar?

Confirm the connected device has M5 terminals and the required L1/L2/L3 phase sequence, then select the cross-section, length, module count and reference current from the published model matrix.
