Multi-pole panel connections
Organize 2-pole, 3-pole and 4-pole connections in compatible distribution boards and control panels.
WB2 / WB3 / WB4 Series · Wiring Bridges
Wiring Bridge WB2:3:4
Wiring bridges for organized multi-pole connections in compatible electrical panels and distribution assemblies.
WB2 / WB3 / WB4Published range
2-pole / 3-pole / 4-polePole options
10 mm² / 16 mm²Conductor sizes
Standard reference black; B suffix blueColor convention
01 / PRODUCT VIEWThe WB2, WB3 and WB4 families cover 2-pole, 3-pole and 4-pole wiring bridges in 10 and 16 mm² formats. Published lengths are 125 mm for the 10 mm² rows and 140 mm for the 16 mm² rows, with black standard and blue B-suffix references.
02 / TECHNICAL DATA
WB2–WB4 published order references
Use the table to match pole count, conductor size, length and color reference before preparing an order or repeat panel build.
Wiring bridge specifications
Published rangeWB2 / WB3 / WB4
Pole options2-pole / 3-pole / 4-pole
Conductor sizes10 mm² / 16 mm²
Color conventionStandard reference black; B suffix blue
WB2-10 · 2-poleArticle No.: WB2-10 · 10 mm² · 125 mm · WB2-10 (black) / WB2-10B (blue)
WB2-16 · 2-poleArticle No.: WB2-16 · 16 mm² · 140 mm · WB2-16 (black) / WB2-16B (blue)
WB3-10 · 3-poleArticle No.: WB3-10 · 10 mm² · 125 mm · WB3-10 (black) / WB3-10B (blue)
WB3-16 · 3-poleArticle No.: WB3-16 · 16 mm² · 140 mm · WB3-16 (black) / WB3-16B (blue)
WB4-10 · 4-poleArticle No.: WB4-10 · 10 mm² · 125 mm · WB4-10 (black) / WB4-10B (blue)
WB4-16 · 4-poleArticle No.: WB4-16 · 16 mm² · 140 mm · WB4-16 (black) / WB4-16B (blue)

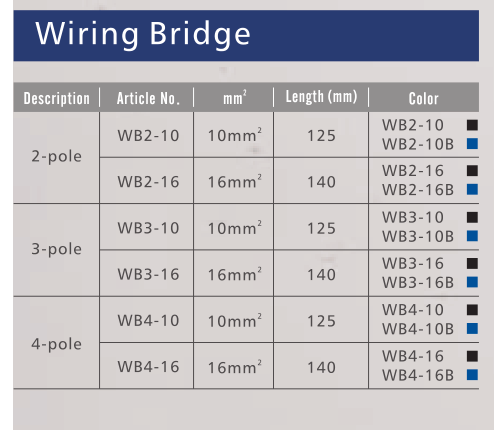

WB2–WB4 published reference table
Select the required pole format
Choose the pole count, then confirm conductor size, length and color reference in the published table.
04 / APPLICATIONS
Where WB wiring bridges are used
02
Repeat assembly work
Use the WB2, WB3 or WB4 reference with conductor size and length for consistent panel builds.
03
Color-coded wiring
Select the standard black reference or the B-suffix blue reference where color identification is required.
05 / RESOURCES
WB wiring bridge documents and support
Use the published reference table for initial selection, then confirm compatibility and packaging with your KASEEY enquiry.
What pole formats are available?
The published range includes WB2 2-pole, WB3 3-pole and WB4 4-pole wiring bridges.
How are color references shown?
The standard model reference is black; adding the B suffix identifies the blue reference, for example WB2-10B.
