Panel wiring
Organize multiple conductor terminations inside distribution boards, control panels and electrical cabinets.
T007 Series · Brass Terminal Blocks
Brass Terminal block T007
Brass terminal blocks for organized conductor termination, panel wiring and repeat electrical cabinet assemblies.
T007 brass terminal blockSeries
6 / 7 / 8 / 10 / 12 / 14 / 16 waysWay options
6 × 9Published profile
35 × 6 mmInstallation dimension
01 / PRODUCT VIEWThe T007 range covers 6, 7, 8, 10, 12, 14 and 16-way terminal blocks in a 6 × 9 profile. The published references specify L1 overall length, a 35 × 6 installation dimension, M4 screws, 5.0 mm diameter and blue or green variants for repeat panel work.
02 / TECHNICAL DATA
T007 published models and dimensions
Select a published Article No. to review its way count, profile, L1 overall length, L2 installation dimension, screw size, diameter and available blue/green variants.
Product foundation
SeriesT007 brass terminal block
Way options6 / 7 / 8 / 10 / 12 / 14 / 16 ways
Published profile6 × 9
Installation dimension35 × 6 mm
Screw and diameterM4 screws · 5.0 mm diameter
Colour variantsBlue (B) and Green (G)

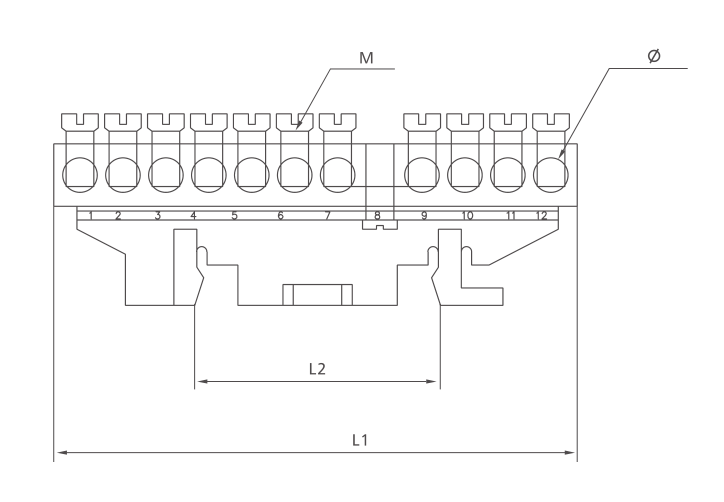

T007 dimension drawing
SELECT BY WAYS
Published sizes & dimensions
Choose a ways to select its published order model and dimensional row.
Active order modelT007-0609/66 ways ways
Ways7 published models
MODEL MATRIX
Published model matrix
Select any row to prepare an enquiry for that order model.
| Order selection | Published data | |||||||
|---|---|---|---|---|---|---|---|---|
| Select | Order model | Ways | Spec. | L1 (mm) | L2 Installation Dimension (mm) | M Screws | Ø Diameter | Remark |
| 6 ways | 6 × 9 | 60.5 | 35 × 6 | M4 | 5.0 | T007-0609/6B Blue / T007-0609/6G Green | ||
| 7 ways | 6 × 9 | 60.5 | 35 × 6 | M4 | 5.0 | T007-0609/7B Blue / T007-0609/7G Green | ||
| 8 ways | 6 × 9 | 60.5 | 35 × 6 | M4 | 5.0 | T007-0609/8B Blue / T007-0609/8G Green | ||
| 10 ways | 6 × 9 | 69 | 35 × 6 | M4 | 5.0 | T007-0609/10B Blue / T007-0609/10G Green | ||
| 12 ways | 6 × 9 | 81 | 35 × 6 | M4 | 5.0 | T007-0609/12B Blue / T007-0609/12G Green | ||
| 14 ways | 6 × 9 | 93 | 35 × 6 | M4 | 5.0 | T007-0609/14B Blue / T007-0609/14G Green | ||
| 16 ways | 6 × 9 | 105 | 35 × 6 | M4 | 5.0 | T007-0609/16B Blue / T007-0609/16G Green | ||
Published dimensions are shown in millimetres unless another unit is displayed. Include the application, quantity and installation requirements in your enquiry.
Quote the selected Brass Terminal block T007 size.
Select the required ways above, then send the chosen order model with your quantity and application details.
PUBLISHED WAYS
6ways
ORDER MODELT007-0609/6Ready for enquiry
Ways6
Spec.6 × 9
L1 (mm)60.5mm
L2 Installation Dimension (mm)35 × 6mm
M ScrewsM4
Ø Diameter5.0mm
RemarkT007-0609/6B Blue / T007-0609/6G Green
04 / APPLICATIONS
Where T007 terminal blocks are used
02
Multi-way assemblies
Select 6–16 ways and the matching L1 length for the required wiring layout.
03
Repeat OEM builds
Use the Article No., L1/L2 dimensions and colour suffix to keep repeat panel supply consistent.
05 / RESOURCES
T007 documents and product support
Use the published model matrix and dimension drawing for initial selection, then confirm conductor, marking, colour and packaging requirements with KASEEY.
Which T007 profile is published?
The supplied table lists the 6 × 9 profile.
Which colour variants are available?
Each published reference lists a blue B variant and a green G variant in the Remark column.
What are the T007 installation dimensions?
The supplied references use a 35 × 6 installation dimension, with L1 varying by way count.
