Products›Brass Bars›Brass Bars T15A / T15B

T15 Series · Brass Bars · T15A / T15B

Brass Bars T15A / T15B

Name: Brass Bars T15A / T15B
Brand: KASEEY

T15A and T15B brass bars for organized neutral and earth distribution, terminal assemblies and repeat electrical cabinet builds.

T15A / T15B brass barsSeries

T15A (+1) and T15B (+2)Pattern options

6 × 9 and 8 × 12Published profiles

4–24 waysWay range

Technical data

KASEEY Brass Bars T15A and T15B product view

01 / PRODUCT VIEW

The T15 range combines T15A (+1) and T15B (+2) brass bar patterns. Published references cover 4–24 ways in 6 × 9 and 8 × 12 profiles, with 5.2 mm or 6.0 mm diameters. Select the Article No. that matches the bar pattern, profile and way count shown in the supplied references.

02 / TECHNICAL DATA

T15A / T15B published models

Choose a published Article No. to compare the way count, profile and diameter. The article suffix identifies the T15A (+1) or T15B (+2) pattern.

Product foundation

SeriesT15A / T15B brass bars

Pattern optionsT15A (+1) and T15B (+2)

Published profiles6 × 9 and 8 × 12

Way range4–24 ways

Diameter options5.2 mm and 6.0 mm

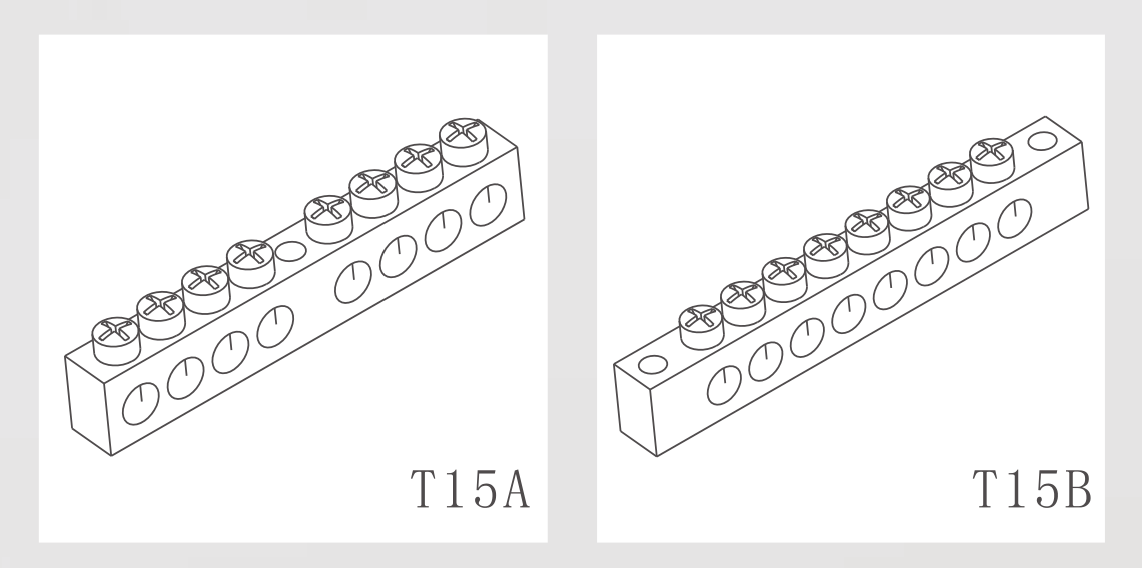

T15A / T15B dimension drawing

KASEEY Brass Bars T15A and T15B dimension drawing showing L1, L2, M and diameter

SELECT BY WAYS

Published sizes & dimensions

Choose a ways to select its published order model and dimensional row.

Active order modelT15A-0609/4+14 ways ways

Ways42 published models

MODEL MATRIX

Published model matrix

Select any row to prepare an enquiry for that order model.

Order selection			Published data
Select	Order model	Ways	Spec.	Ø Diameter
		4 ways	6 × 9	5.2
		6 ways	6 × 9	5.2
		8 ways	6 × 9	5.2
		10 ways	6 × 9	5.2
		12 ways	6 × 9	5.2
		14 ways	6 × 9	5.2
		16 ways	6 × 9	5.2
		18 ways	6 × 9	5.2
		20 ways	6 × 9	5.2
		22 ways	6 × 9	5.2
		24 ways	6 × 9	5.2
		4 ways	8 × 12	6.0
		6 ways	8 × 12	6.0
		8 ways	8 × 12	6.0
		10 ways	8 × 12	6.0
		12 ways	8 × 12	6.0
		16 ways	8 × 12	6.0
		18 ways	8 × 12	6.0
		20 ways	8 × 12	6.0
		22 ways	8 × 12	6.0
		24 ways	8 × 12	6.0
		4 ways	6 × 9	5.2
		6 ways	6 × 9	5.2
		8 ways	6 × 9	5.2
		10 ways	6 × 9	5.2
		12 ways	6 × 9	5.2
		14 ways	6 × 9	5.2
		16 ways	6 × 9	5.2
		18 ways	6 × 9	5.2
		20 ways	6 × 9	5.2
		22 ways	6 × 9	5.2
		24 ways	6 × 9	5.2
		4 ways	8 × 12	6.0
		6 ways	8 × 12	6.0
		8 ways	8 × 12	6.0
		10 ways	8 × 12	6.0
		12 ways	8 × 12	6.0
		16 ways	8 × 12	6.0
		18 ways	8 × 12	6.0
		20 ways	8 × 12	6.0
		22 ways	8 × 12	6.0
		24 ways	8 × 12	6.0

Published dimensions are shown in millimetres unless another unit is displayed. Include the application, quantity and installation requirements in your enquiry.

03 / PRODUCT SELECTION

Quote the selected Brass Bars T15A / T15B size.

Select the required ways above, then send the chosen order model with your quantity and application details.

PUBLISHED WAYS

4ways

ORDER MODELT15A-0609/4+1Ready for enquiry

Published dimensionsmm

Ways4

Spec.6 × 9

Ø Diameter5.2mm

Change size in the table

04 / APPLICATIONS

Where T15 brass bars are used

Neutral and earth distribution

Create organized multi-way connection points in panel distribution and terminal assemblies.

Pattern-matched assemblies

Choose the T15A (+1) or T15B (+2) arrangement and matching profile for the installation layout.

Repeat OEM builds

Use the Article No., profile, way count and diameter to keep repeat panel supply consistent.

05 / RESOURCES

T15 brass bar documents and support

Use the published model matrix and dimension drawing for initial selection, then confirm conductor, marking, colour and packaging requirements with KASEEY.

What is the difference between T15A and T15B?

T15A references use the +1 article pattern and T15B references use the +2 article pattern shown in the supplied product drawings.

Which profiles and diameters are published?

The supplied references list 6 × 9 with a 5.2 mm diameter and 8 × 12 with a 6.0 mm diameter.

How should the Article No. be selected?

Select the pattern, profile and way count required for the panel, then confirm the corresponding Article No. and diameter.
