Description

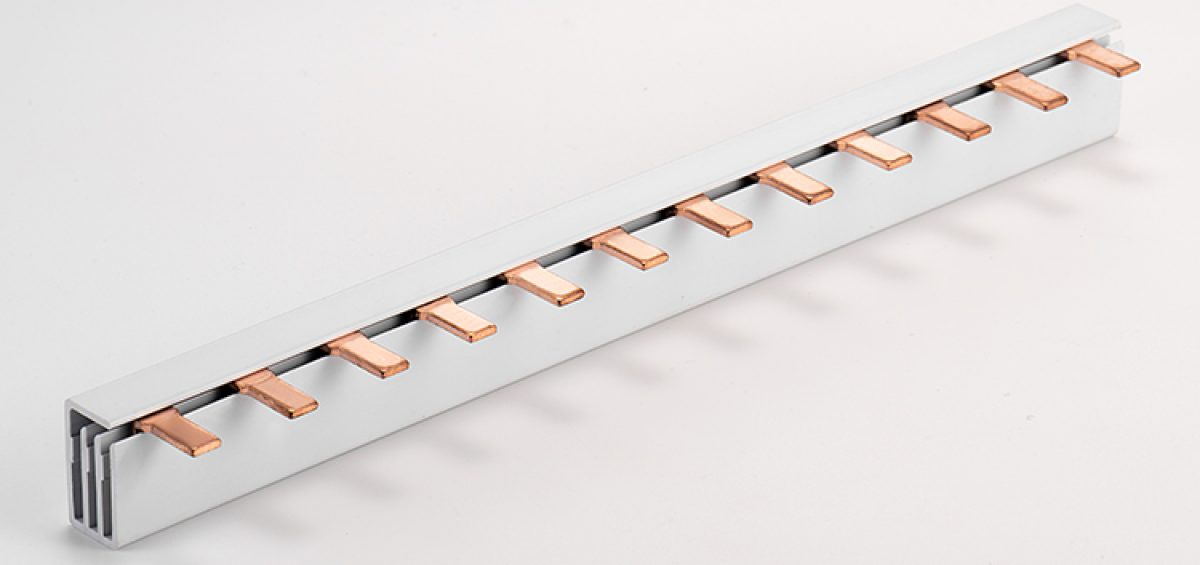

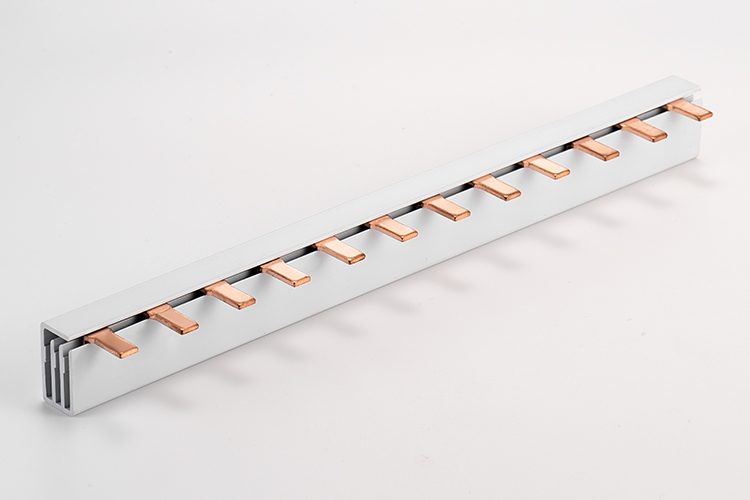

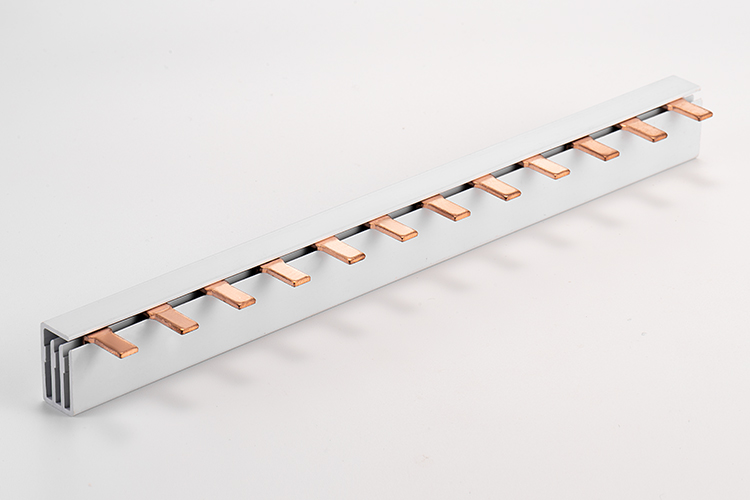

Pin type, 3 phase closed busbars
KASEEY BUSBAR FOR MCBS,COPPER COMB BUSBAR, P-3L/D
| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| P-3L-210/8D | KP31208D | 8mm² | 17.8 | 4 | 11.5 | 12 | 210 | 50 A |
| P-3L-210/10D | KP31210D | 10mm² | 17.8 | 4 | 11.5 | 12 | 210 | 63 A |
| P-3L-210/13D | KP31213D | 13mm² | 17.8 | 4 | 11.5 | 12 | 210 | 70 A |
| P-3L-210/16D | KP31216D | 16mm² | 17.8 | 4 | 11.5 | 12 | 210 | 80 A |
| P-3L-1000/8D | KP35408D | 8mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 50 A |
| P-3L-1000/10D | KP35410D | 10mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 63 A |
| P-3L-1000/13D | KP35413D | 13mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 70 A |
| P-3L-1000/16D | KP35416D | 16mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 80 A |
| P-3L-1016/8D | KP35708D | 8mm² | 17.8 | 4 | 11.5 | 57 | 1016 | 50 A |
| P-3L-1016/10D | KP35710D | 10mm² | 17.8 | 4 | 11.5 | 57 | 1016 | 63 A |
| P-3L-1016/13D | KP35713D | 13mm² | 17.8 | 4 | 11.5 | 57 | 1016 | 70 A |
| P-3L-1016/16D | KP35716D | 16mm² | 17.8 | 4 | 11.5 | 57 | 1016 | 80 A |
