Description

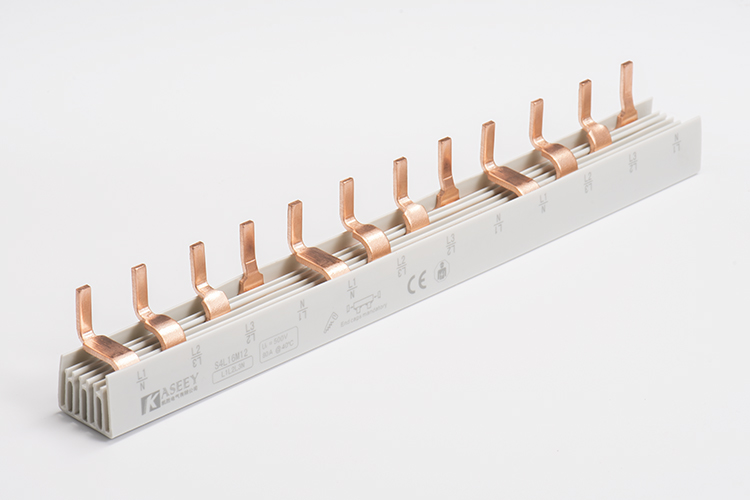

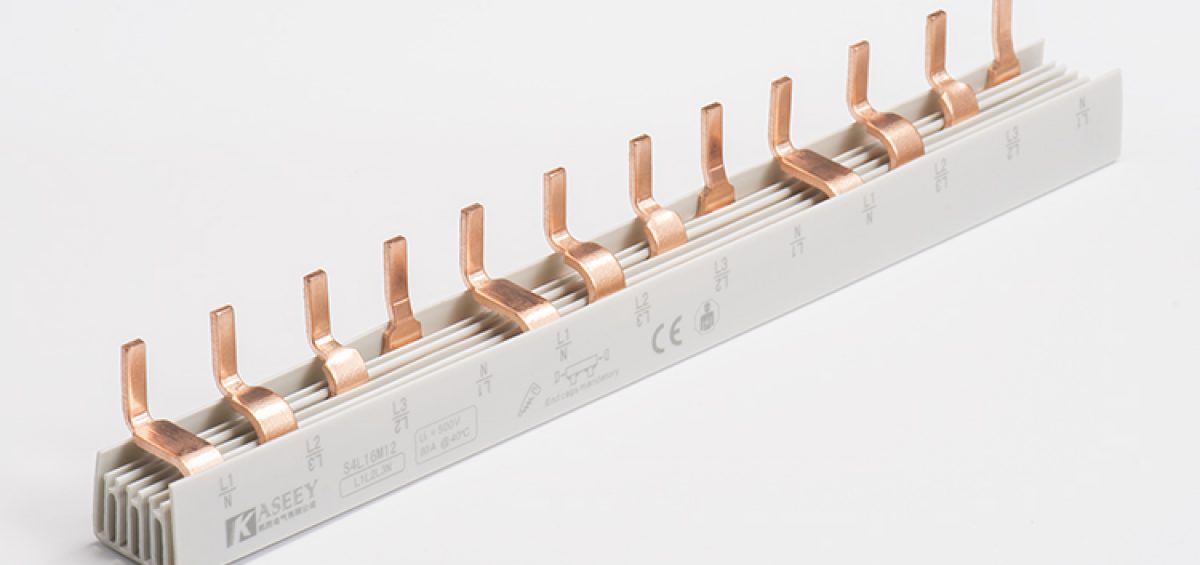

Pin type, 4 phase busbars
KASEEY BUSBAR FOR MCBS,COPPER COMB BUSBAR, S-4L
| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| S-4L-210/8 | KS41208 | 8mm² | 17.8 | 4 | 12.5 | 12 | 210 | 50 A |
| S-4L-210/10 | KS41210 | 10mm² | 17.8 | 4 | 12.5 | 12 | 210 | 63 A |
| S-4L-210/13 | KS41213 | 13mm² | 17.8 | 4 | 12.5 | 12 | 210 | 70 A |
| S-4L-210/16 | KS41216 | 16mm² | 17.8 | 4 | 12.5 | 12 | 210 | 80 A |
| S-4L-1016/8 | KS45608 | 8mm² | 17.8 | 4 | 12.5 | 56 | 1016 | 50 A |
| S-4L-1016/10 | KS45610 | 10mm² | 17.8 | 4 | 12.5 | 56 | 1016 | 63 A |
| S-4L-1016/13 | KS45613 | 13mm² | 17.8 | 4 | 12.5 | 56 | 1016 | 70 A |
| S-4L-1016/16 | KS45616 | 16mm² | 17.8 | 4 | 12.5 | 56 | 1016 | 80 A |
