Description

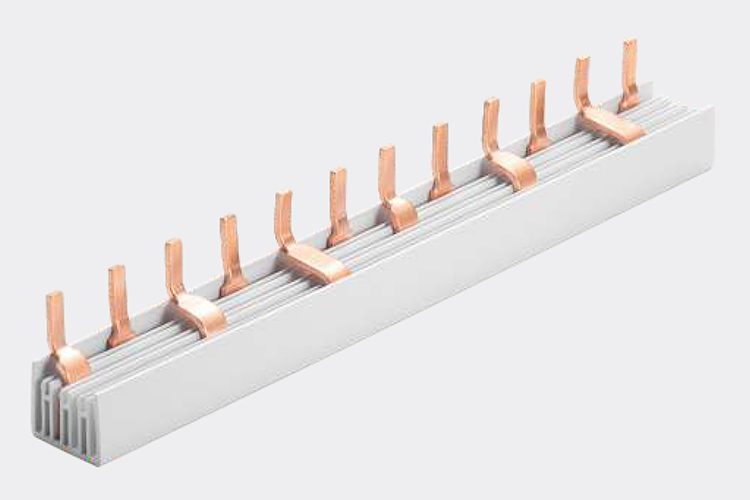

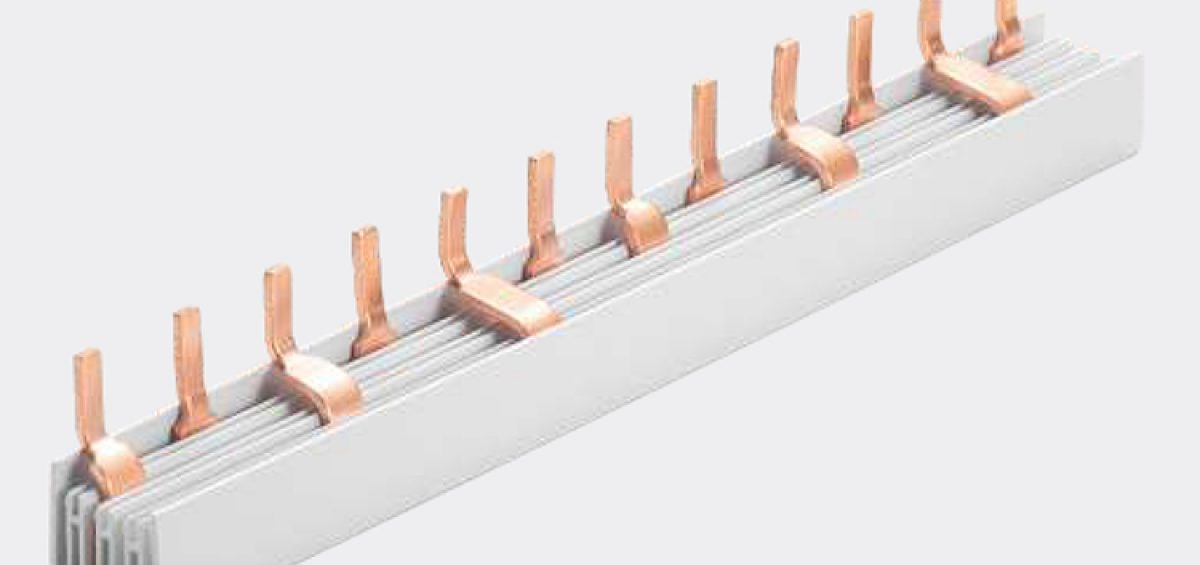

Pin type, 3P+N busbar
KASEEY BUSBAR FOR MCBS,COPPER BUSBAR

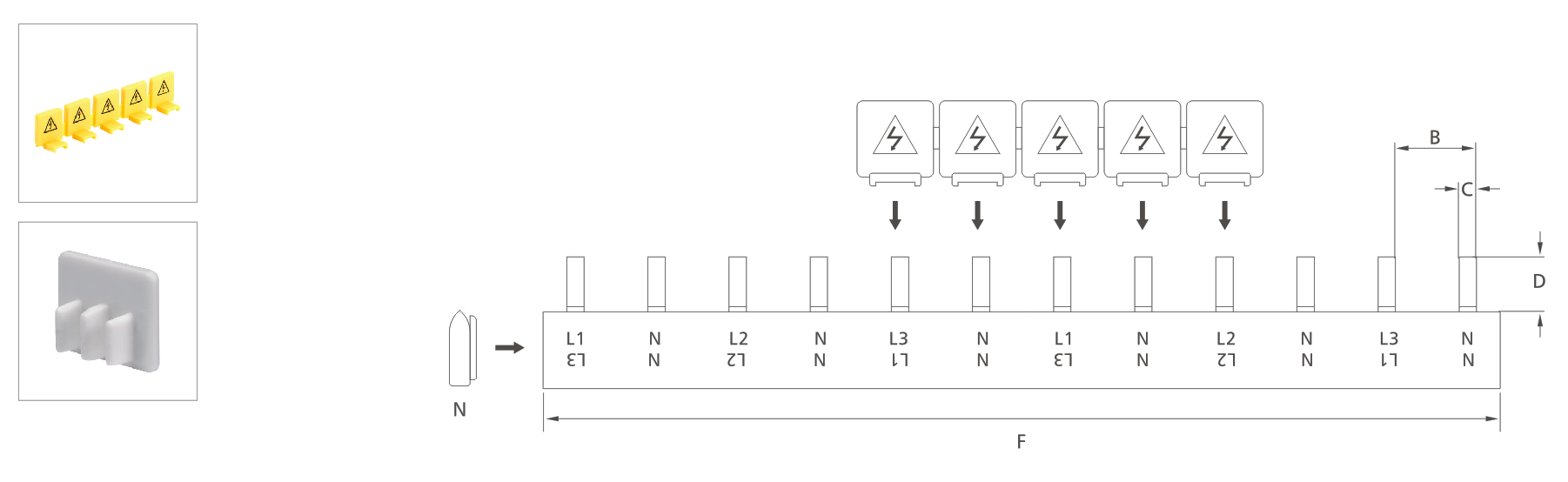

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| S-3L+N-210/8 | KS51208 | 8mm² | 17.8 | 4 | 11.5 | 12 | 210 | 50 A |
| S-3L+N-210/10 | KS51210 | 10mm² | 17.8 | 4 | 11.5 | 12 | 210 | 63 A |
| S-3L+N-210/13 | KS51213 | 13mm² | 17.8 | 4 | 11.5 | 12 | 210 | 70 A |
| S-3L+N-210/16 | KS51216 | 16mm² | 17.8 | 4 | 11.5 | 12 | 210 | 80 A |
| S-3L+N-1000/8 | KS55408 | 8mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 50 A |
| S-3L+N-1000/10 | KS55410 | 10mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 63 A |
| S-3L+N-1000/13 | KS55413 | 13mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 70 A |
| S-3L+N-1000/16 | KS55416 | 16mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 80 A |
