Description

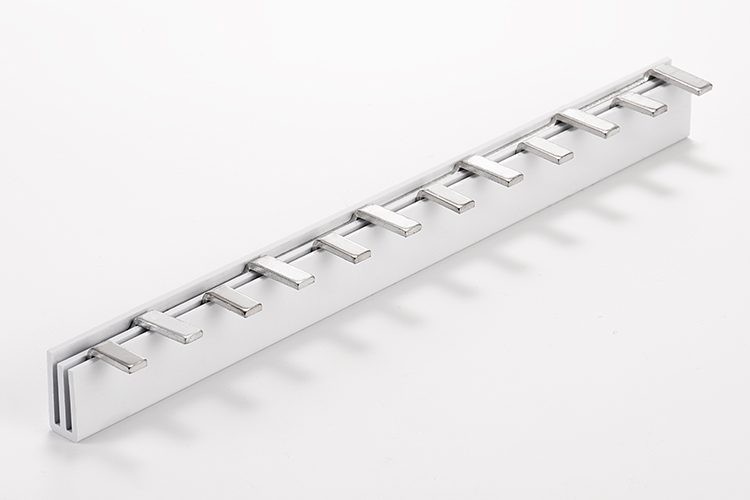

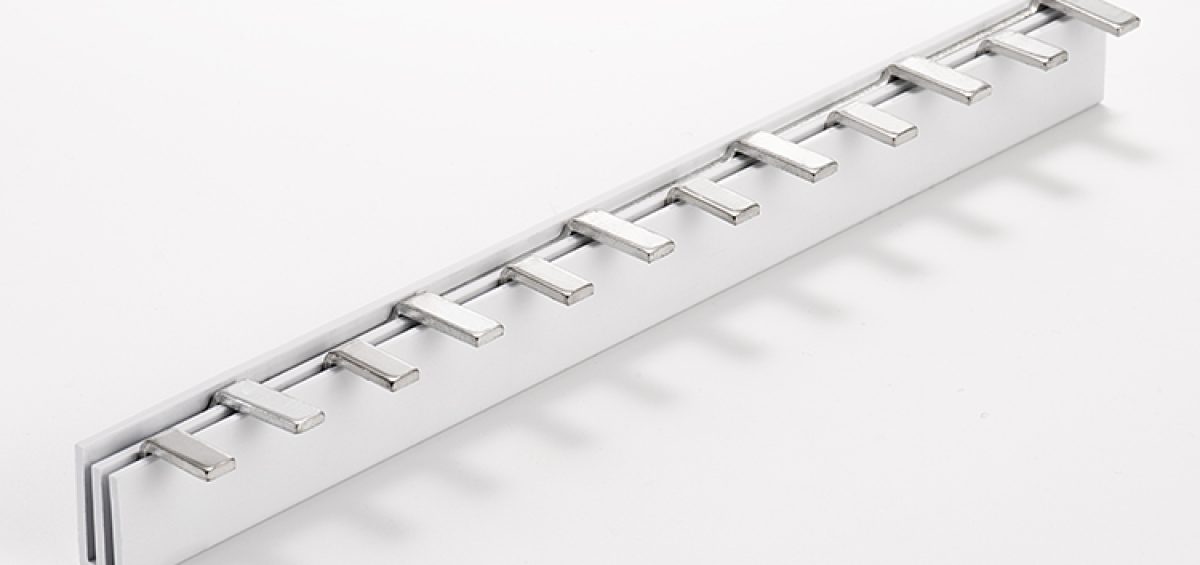

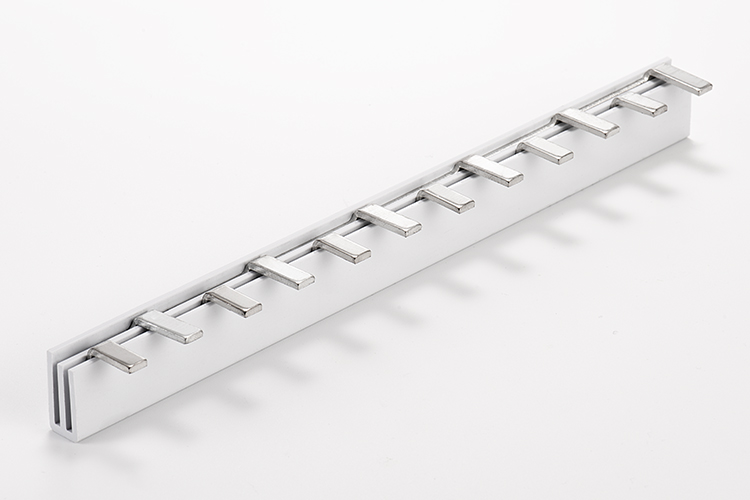

Pin type, 2 phase busbars (C45)
KASEEY BUSBAR FOR MCBS,COPPER COMB BUSBAR, C-2L

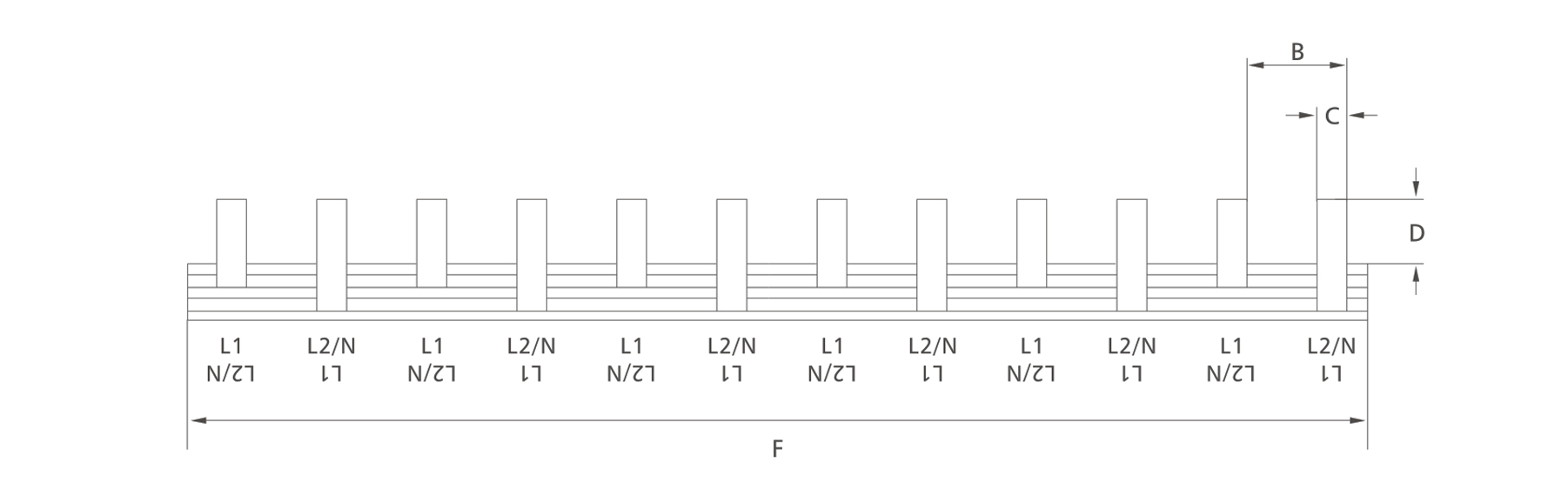

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| C-2L-210/8 | KC21208 | 8mm² | 17.8 | 5.5 | 11.5 | 12 | 210 | 50 A |
| C-2L-210/10 | KC21210 | 10mm² | 17.8 | 5.5 | 11.5 | 12 | 210 | 63 A |
| C-2L-210/13 | KC21213 | 13mm² | 17.8 | 5.5 | 11.5 | 12 | 210 | 70A |
| C-2L-210/16 | KC21216 | 16mm² | 17.8 | 5.5 | 11.5 | 12 | 210 | 80 A |
| C-2L-1000/8 | KC25408 | 8mm² | 17.8 | 5.5 | 11.5 | 54 | 1000 | 50 A |
| C-2L-1000/10 | KC25410 | 10mm² | 17.8 | 5.5 | 11.5 | 54 | 1000 | 63 A |
| C-2L-1000/13 | KC25413 | 10mm² | 17.8 | 5.5 | 11.5 | 54 | 1000 | 70 A |
| C-2L-1000/16 | KC25416 | 16mm² | 17.8 | 5.5 | 11.5 | 54 | 1000 | 80 A |
| C-2L-1016/8 | KC25608 | 8mm² | 17.8 | 5.5 | 11.5 | 56 | 1016 | 50 A |
| C-2L-1016/10 | KC25610 | 10mm² | 17.8 | 5.5 | 11.5 | 56 | 1016 | 63 A |
| C-2L-1016/13 | KC25613 | 13mm² | 17.8 | 5.5 | 11.5 | 56 | 1016 | 70 A |
| C-2L-1016/16 | KC25616 | 16mm² | 17.8 | 5.5 | 11.5 | 56 | 1016 | 80 A |
