Description

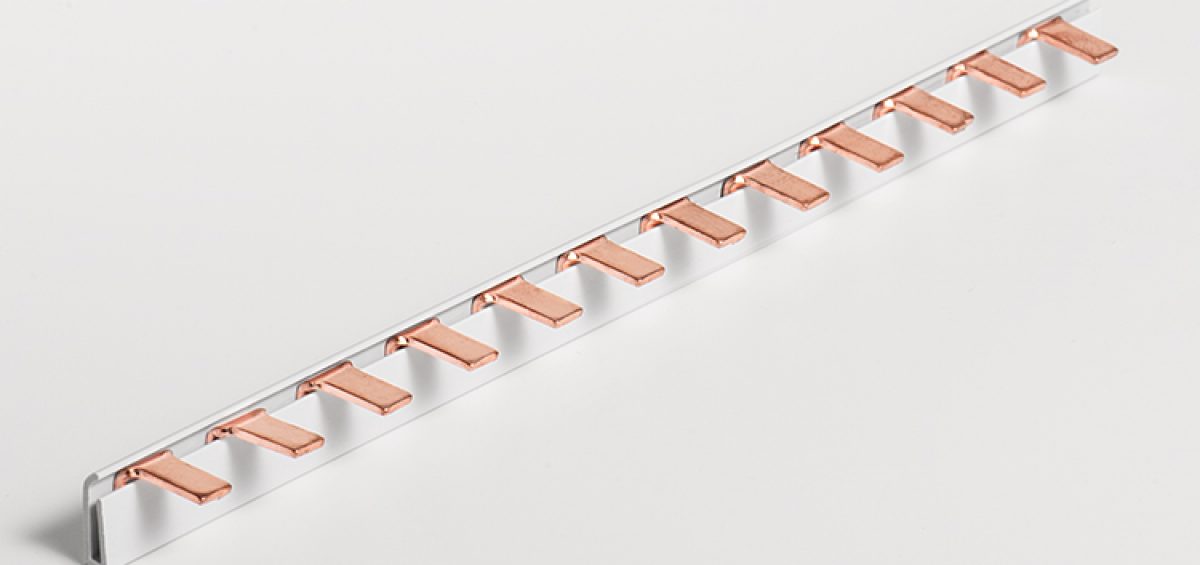

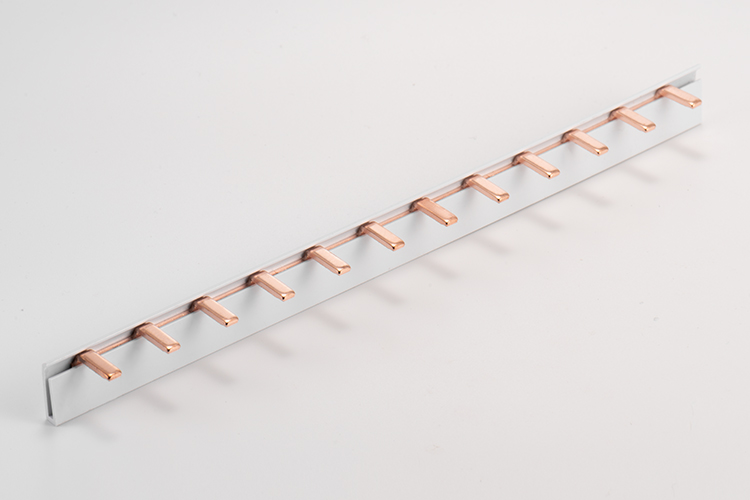

Pin type, 1 phase busbars
KASEEY BUSBAR FOR MCBS,COPPER COMB BUSBAR, P-1L/C

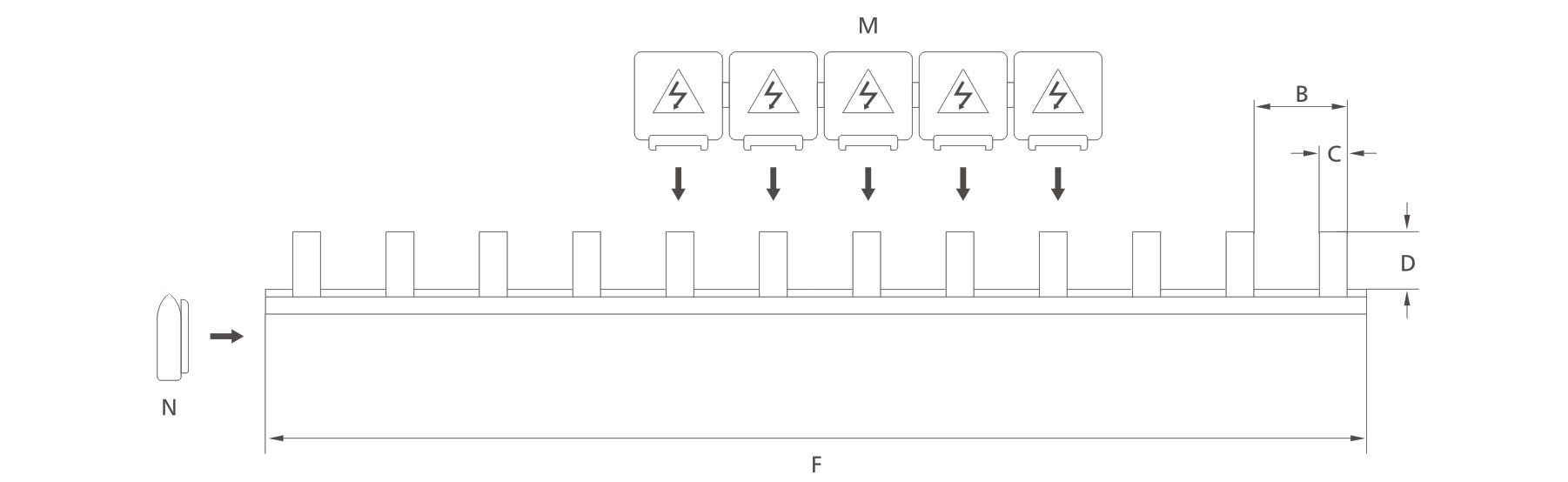

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| P-1L-210/8C | KP11208C | 8mm² | 17.8 | 5.5 | 11.5 | 12 | 210 | 50 A |
| P-1L-210/10C | KP11210C | 10mm² | 17.8 | 5.5 | 11.5 | 12 | 210 | 63 A |
| P-1L-210/13C | KP11213C | 13mm² | 17.8 | 5.5 | 11.5 | 12 | 210 | 70A |
| P-1L-210/16C | KP11216C | 16mm² | 17.8 | 5.5 | 11.5 | 12 | 210 | 80 A |
| P-1L-1000/8C | KP15408C | 8mm² | 17.8 | 5.5 | 11.5 | 54 | 1000 | 50 A |
| P-1L-1000/10C | KP15410C | 10mm² | 17.8 | 5.5 | 11.5 | 54 | 1000 | 63 A |
| P-1L-1000/13C | KP15413C | 13mm² | 17.8 | 5.5 | 11.5 | 54 | 1000 | 70 A |
| P-1L-1000/16C | KP15416C | 16mm² | 17.8 | 5.5 | 11.5 | 54 | 1000 | 80 A |
| P-1L-1016/8C | KP15708C | 8mm² | 17.8 | 5.5 | 11.5 | 57 | 1016 | 50 A |
| P-1L-1016/10C | KP15710C | 10mm² | 17.8 | 5.5 | 11.5 | 57 | 1016 | 63 A |
| P-1L-1016/13C | KP15713C | 13mm² | 17.8 | 5.5 | 11.5 | 57 | 1016 | 70 A |
| P-1L-1016/16C | KP15716C | 16mm² | 17.8 | 5.5 | 11.5 | 57 | 1016 | 80 A |
