Description
Pin type, 1 phase busbars

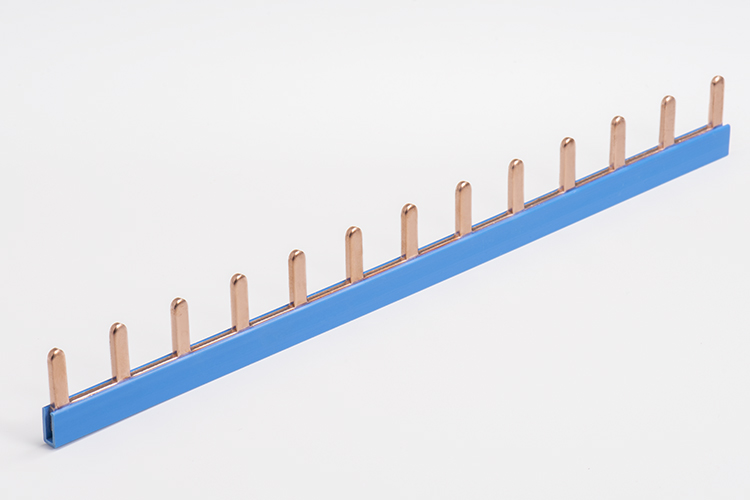

KASEEY BUSBAR FOR MCBS,COPPER COMB BUSBAR, P-1L,13WAYS

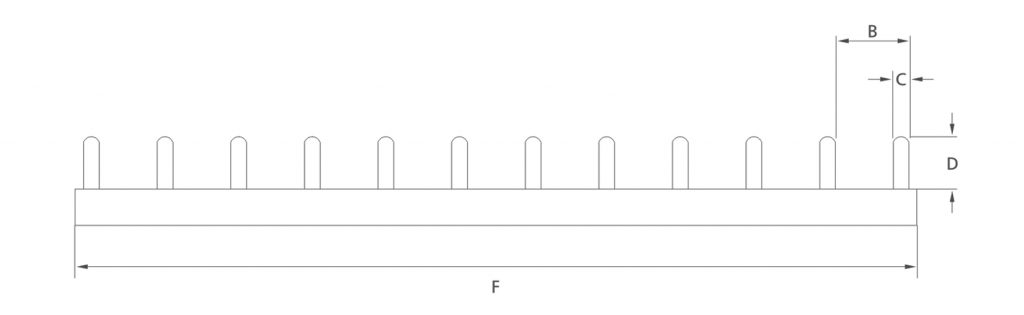

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| P-1L-210/10ISO | KP11310I | 10mm² | 17.8 | 4 | 11.5 | 13 | 225 | 63 A |
| P-1L-210/12ISO | KP11312I | 12mm² | 17.8 | 4 | 11.5 | 13 | 225 | 70 A |
| P-1L-210/14ISO | KP11314I | 14mm² | 17.8 | 4 | 11.5 | 13 | 225 | 80 A |
| P-1L-1000/10ISO | KP15410I | 10mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 63 A |
| P-1L-1000/12ISO | KP15412I | 12mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 70 A |
| P-1L-1000/14ISO | KP15414I | 14mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 80 A |
