Description

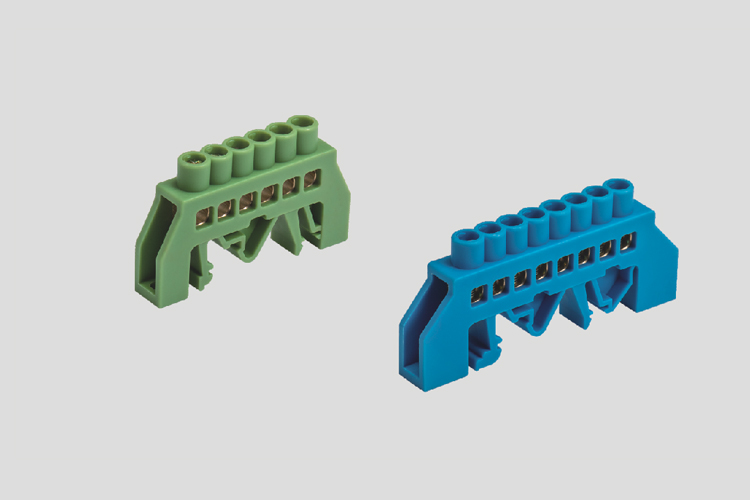

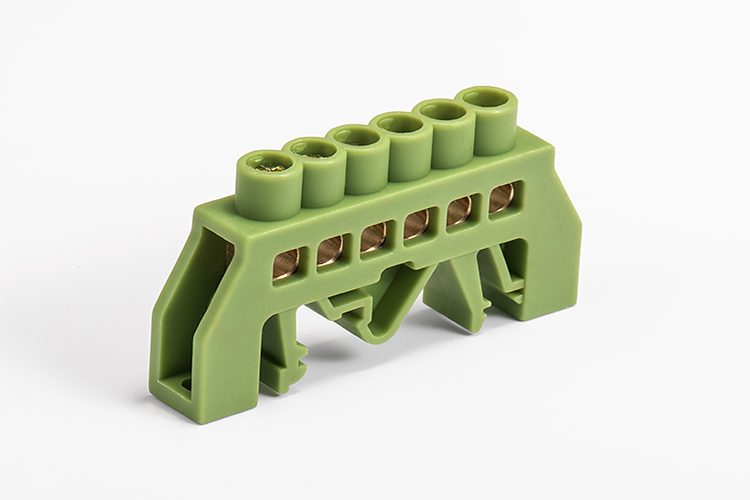

Brass Terminal block T009

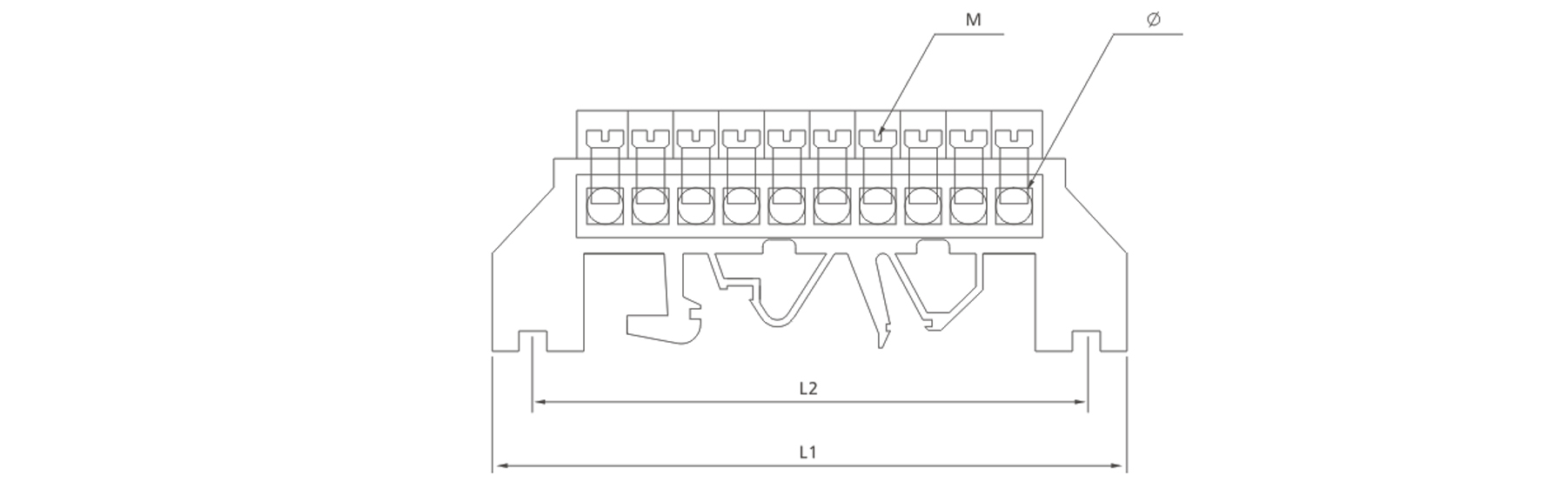

| Article No. | Ways | Spec. | L1(mm) | L2 (mm) | M Screws | Φ Diameter | Remark |
| T009-0609/6 | 6 | 6×9 | 57.5 | 50.5 | M4 | 5 | T009-0609/6B Blue T009-0609/6G Green |
| T009-0609/8 | 8 | 6×9 | 78 | 67 | M4 | 5 | T009-0609/8B Blue T009-0609/8G Green |
| T009-0609/10 | 10 | 6×9 | 90.5 | 80 | M4 | 5 | T009-0609/10B Blue T009-0609/10G Green |
| T009-0609/12 | 12 | 6×9 | 104 | 92 | M4 | 5 | T009-0609/12B Blue T009-0609/12G Green |
| T009-0812/6 | 6 | 8×12 | 77 | 64.5 | M5 | 7 | T009-0812/6B Blue T009-0812/6G Green |
| T009-0812/8 | 8 | 8×12 | 94.5 | 80 | M5 | 7 | T009-0812/8B Blue T009-0812/8G Green |
| T009-0812/10 | 10 | 8×12 | 111 | 98.36 | M5 | 7 | T009-0812/10B Blue T009-0812/10G Green |
| T009-0812/12 | 12 | 8×12 | 127.5 | 115.3 | M5 | 7 | T009-0812/12B Blue T009-0812/12G Green |
| T009-0812/14 | 14 | 8×12 | 144.5 | 132.3 | M5 | 7 | T009-0812/14B Blue T009-0812/14G Green |
| T009-0812/16 | 16 | 8×12 | 163 | 150.7 | M5 | 7 | T009-0812/16B Blue T009-0812/16G Green |
