Description

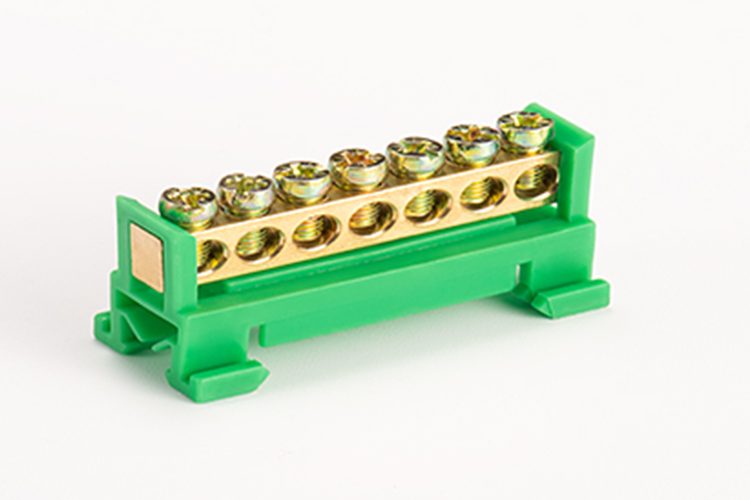

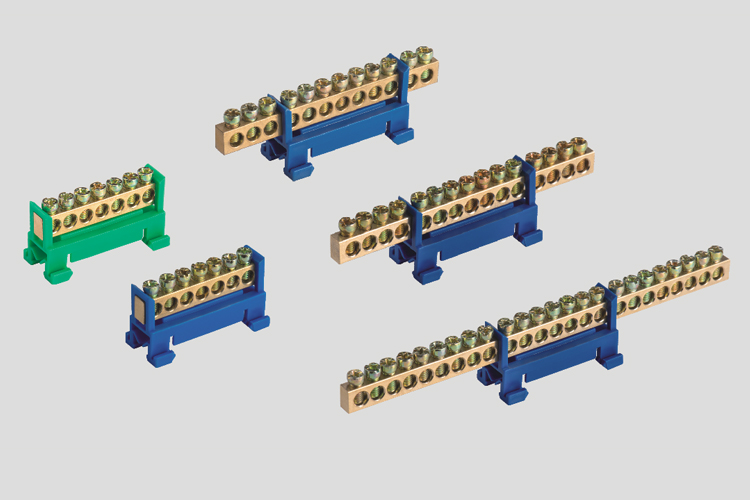

Brass Terminal block T006

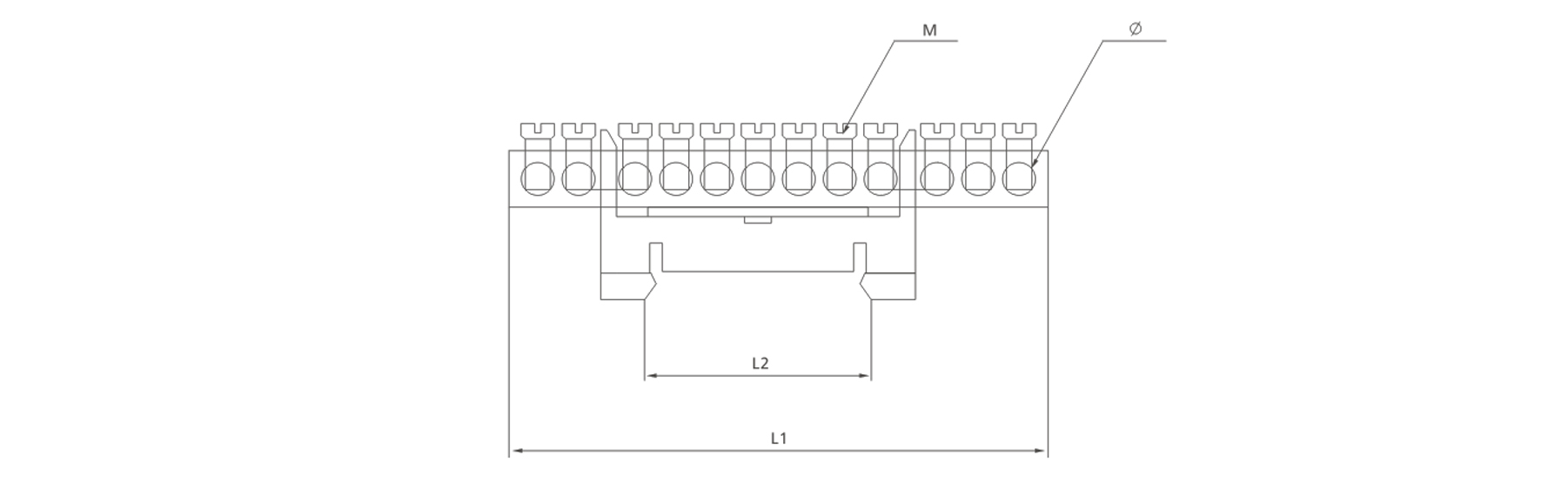

| Article No. | Ways | Spec. | L1(mm) | L2 (mm) | M Screws | Φ Diameter | Remark |
| T006-0609/7 | 7 | 6×9 | 50 | 35×8.5 | M5 | 5.5 | T006-0609/7B Blue T006-0609/7G Green |
| T006-0609/8 | 8 | 6×9 | 63 | 35×8.5 | M5 | 5.5 | T006-0609/8B Blue T006-0609/8G Green |
| T006-0609/10 | 10 | 6×9 | 73 | 35×8.5 | M5 | 5.5 | T006-0609/10B Blue T006-0609/10G Green |
| T006-0609/12 | 12 | 6×9 | 86 | 35×8.5 | M5 | 5.5 | T006-0609/12B Blue T006-0609/12G Green |
| T006-0609/13 | 13 | 6×9 | 90.5 | 35×8.5 | M5 | 5.5 | T006-0609/12B Blue T006-0609/13G Green |
| T006-0609/15 | 15 | 6×9 | 105.5 | 35×8.5 | M5 | 5.5 | T006-0609/15B Blue T006-0609/15G Green |
| T006-0609/16 | 16 | 6×9 | 112 | 35×8.5 | M5 | 5.5 | T006-0609/16B Blue T006-0609/16G Green |
| T006-0609/18 | 18 | 6×9 | 125 | 35×8.5 | M5 | 5.5 | T006-0609/18B Blue T006-0609/18G Green |
| T006-0609/20 | 20 | 6×9 | 138 | 35×8.5 | M5 | 5.5 | T006-0609/20B Blue T006-0609/20G Green |
| T006-0609/24 | 24 | 6×9 | 164 | 35×8.5 | M5 | 5.5 | T006-0609/24B Blue T006-0609/24G Green |
